Description
Shuttle Locks work on pin-lock mechanism & connects almost all the liners to the modular prosthetic sockets.

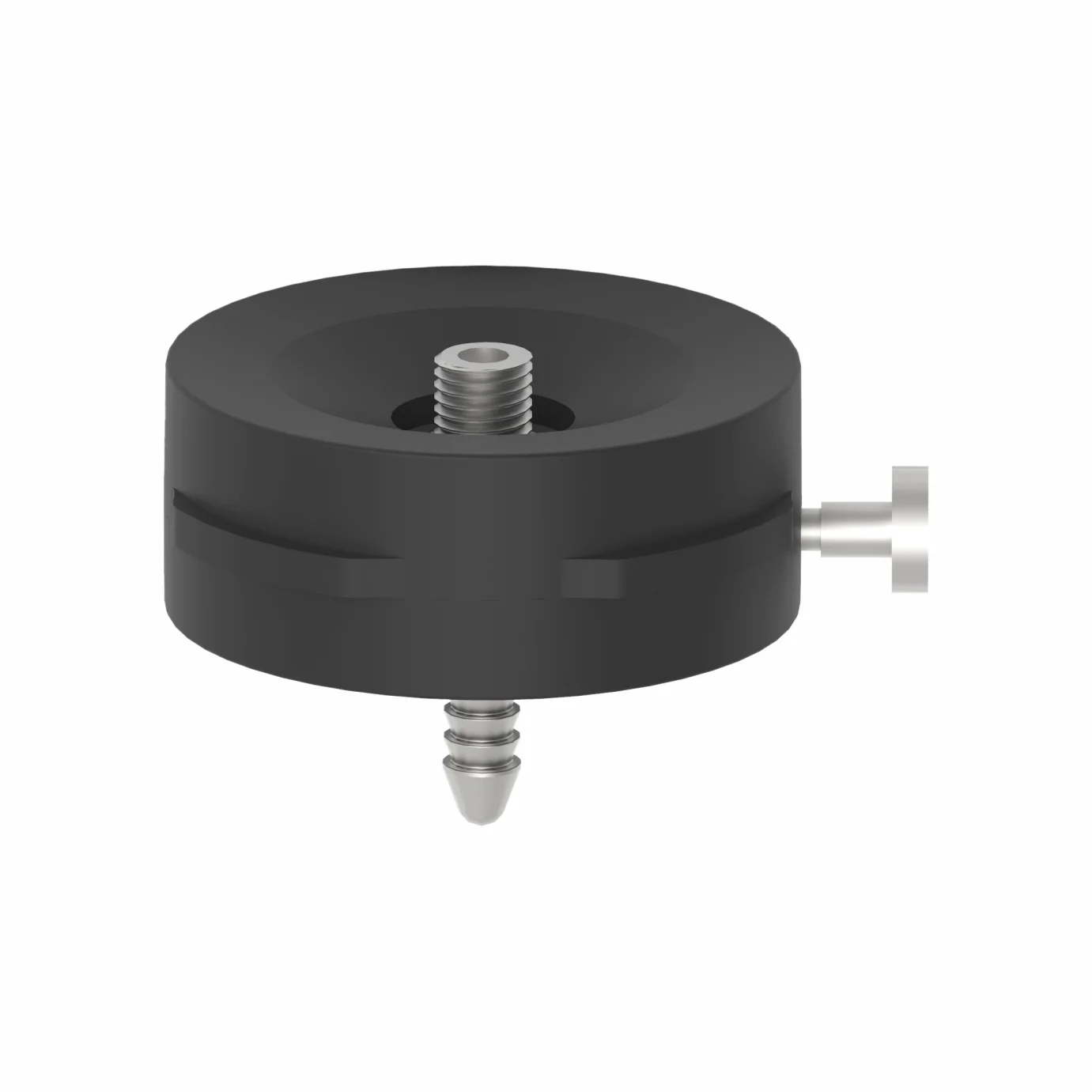

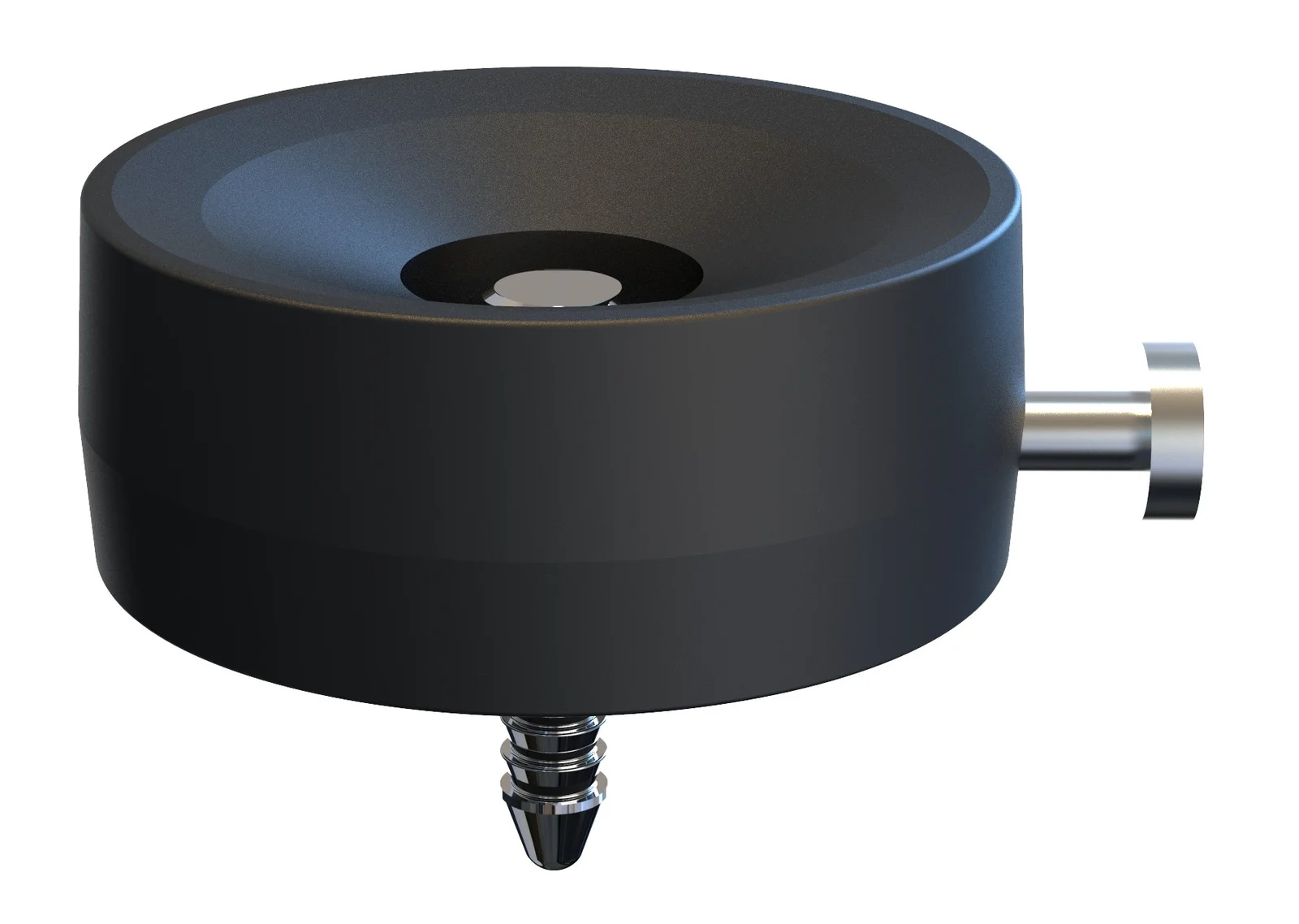

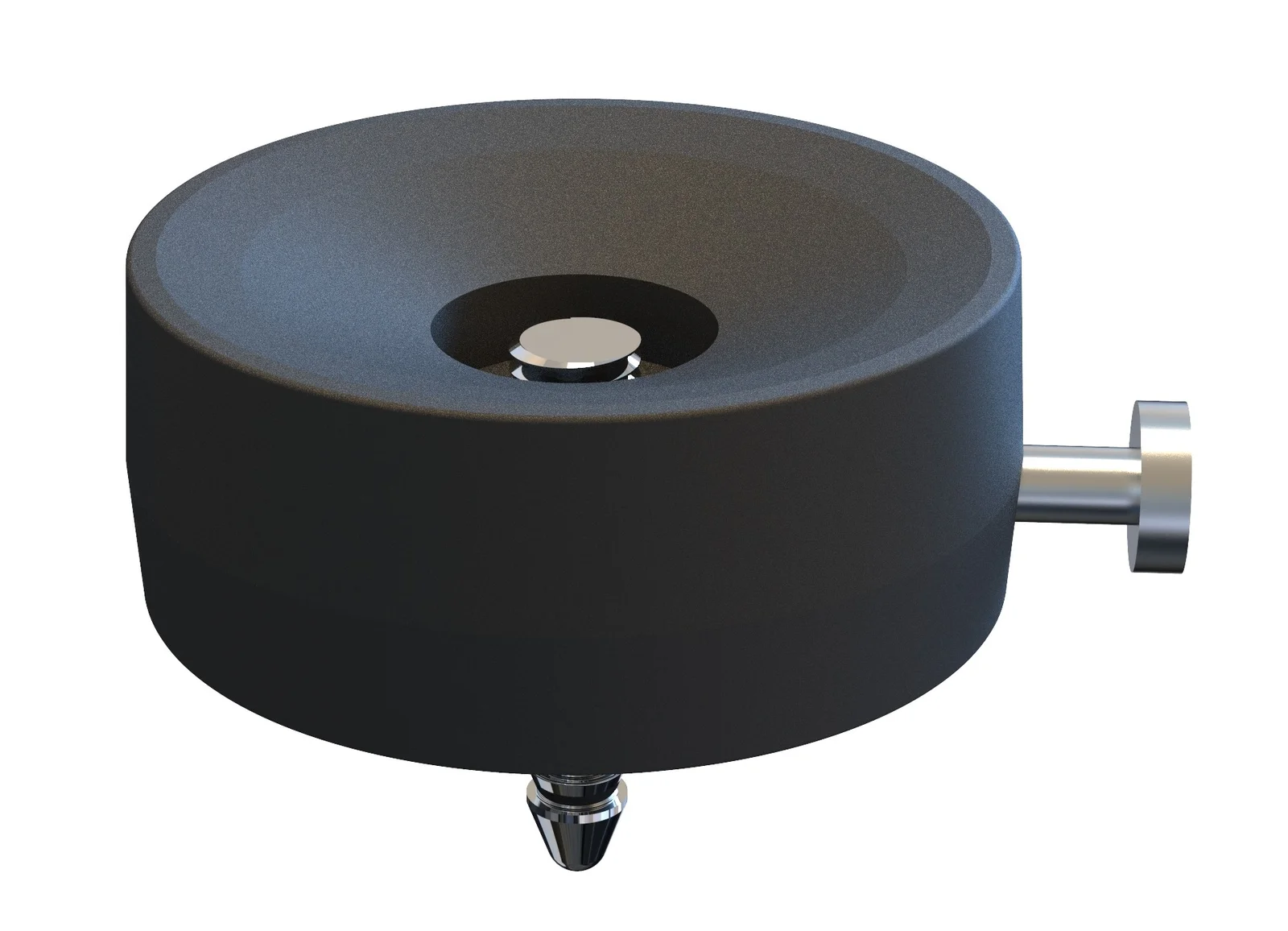

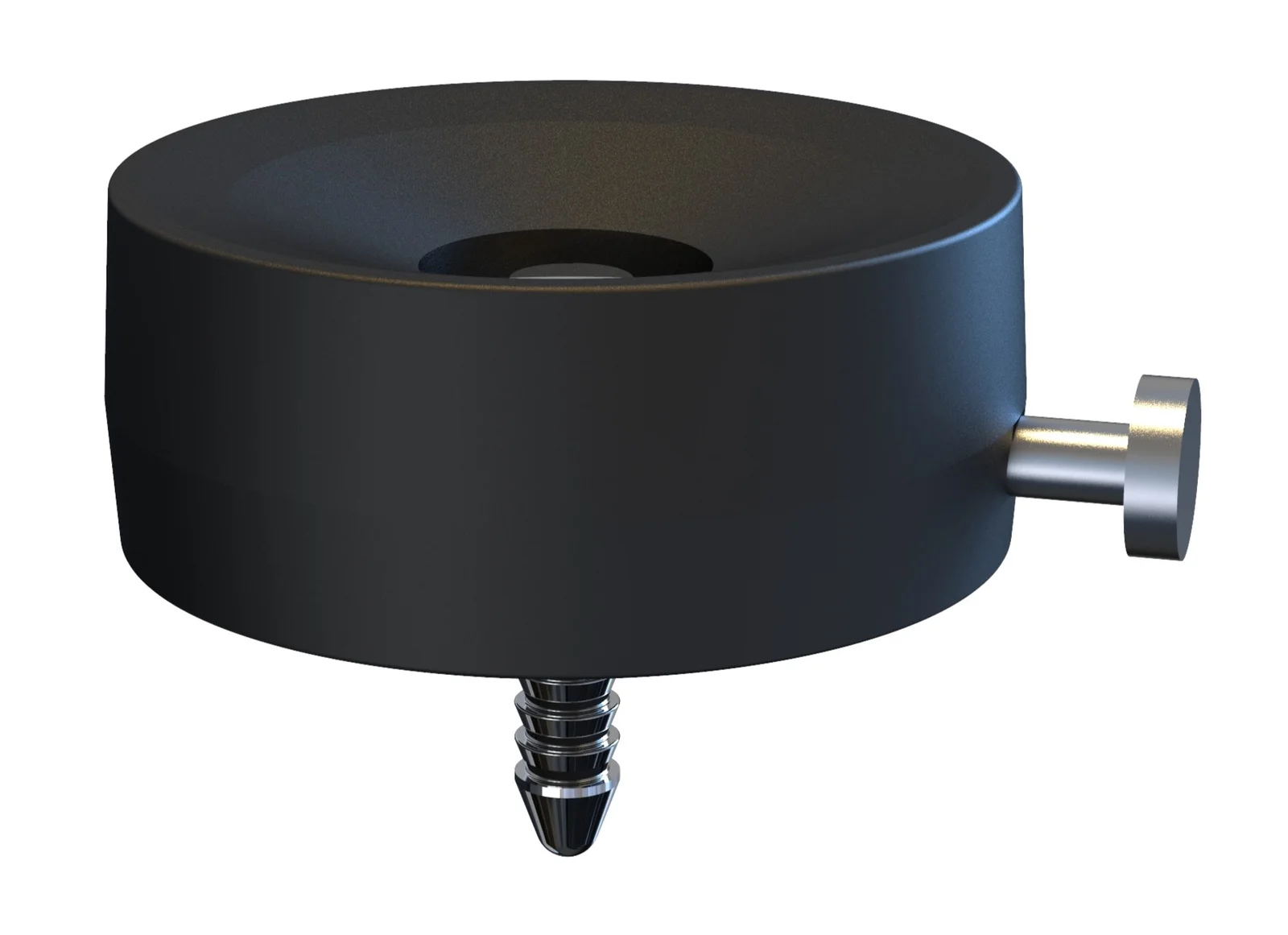

Universal Shuttle Lock –
a) Build Height – 27mm
b) Diameter 69mm
c) Part weight 95 g
d) Weight bearing capacity – 135 kgs.
2. Body – Superior quality polymer body.
3. Total surface bearing contact for maximum Prosthetic liners.
4. Pin – High grade SS with sound feedback during locking.
5. Accessories – Additional set of washers provided for best fit with maximum Liners.
6. Compatible with both transtibial & transfemoral sockets.
7. Compatible with 4 hole socket adapters.
| UNIVERSAL SHUTTLE LOCK | ||
| SR. NO. | USP | User Benefit |
| 1 | SS-304 pin with teeth | Provides tactile locking feedback |
| 2 | Hardened steel internal lock plate | Does not wear out during locking |
| 3 | Total surface bearing contact | Compatible for assembly with all liners |
| 4 | Low build height ~ 27mm | Designed for space-efficient installation in compact areas without need for large sockets |
| 5 | Heat resistant polymer body | Prevents shape distortion during lamination, ensuring durability and integrity at high temperatures |
| 6 | Detachable knob | Simplifies assembly by allowing the knob to be retrofitted externally |
| 7 | Dummy provided | Simplifies socket lamination while preserving the actual piece for final use |
| 8 | 4 holes on the bottom surface | Compatible with 4 hole socket adapter |
