ULISES EVO PRO™ Special Stroller

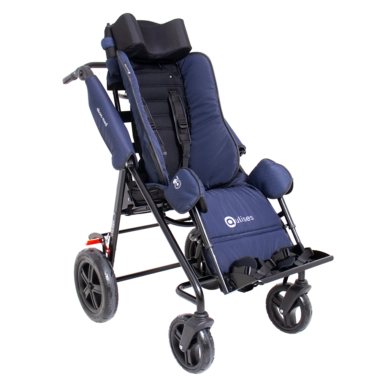

ULISES EVO PRO™ is a special needs stroller, designed for users with musculoskeletal dysfunctions. It meets the needs of those who require additional stabilization while providing comfort and safety during daily activities.

SKU: ULISES EVO PRO™ Categories: , Tags: , , , Brand:

Description

ULISES EVO PRO™ is a special needs stroller, designed for users with musculoskeletal dysfunctions. It meets the needs of those who require additional stabilization while providing comfort and safety during daily activities.

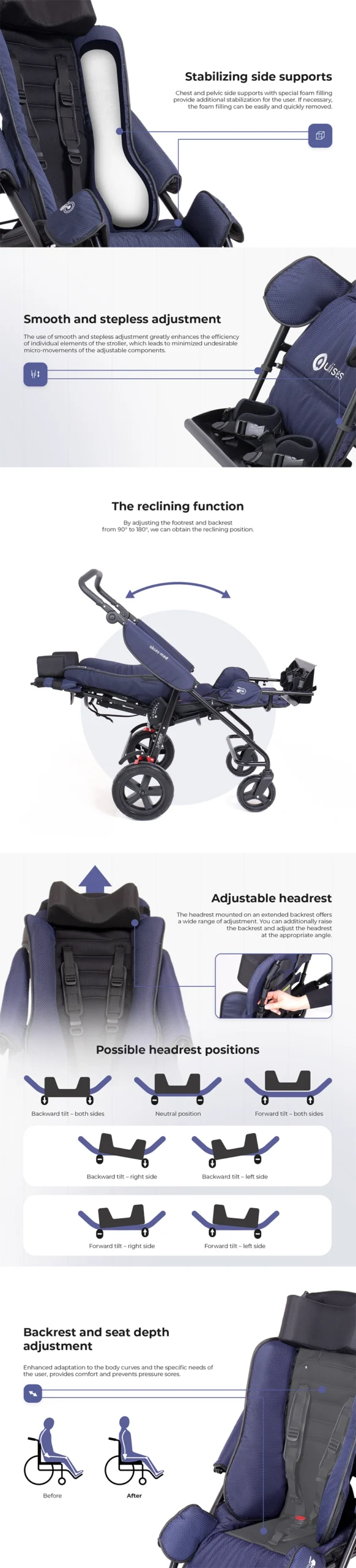

User safety is extremely important, that’s why the stroller is equipped with a system of side supports and safety belts, as well as a stable frame. Additionally, reflective elements on the upholstery increase the visibility of the stroller on the road.

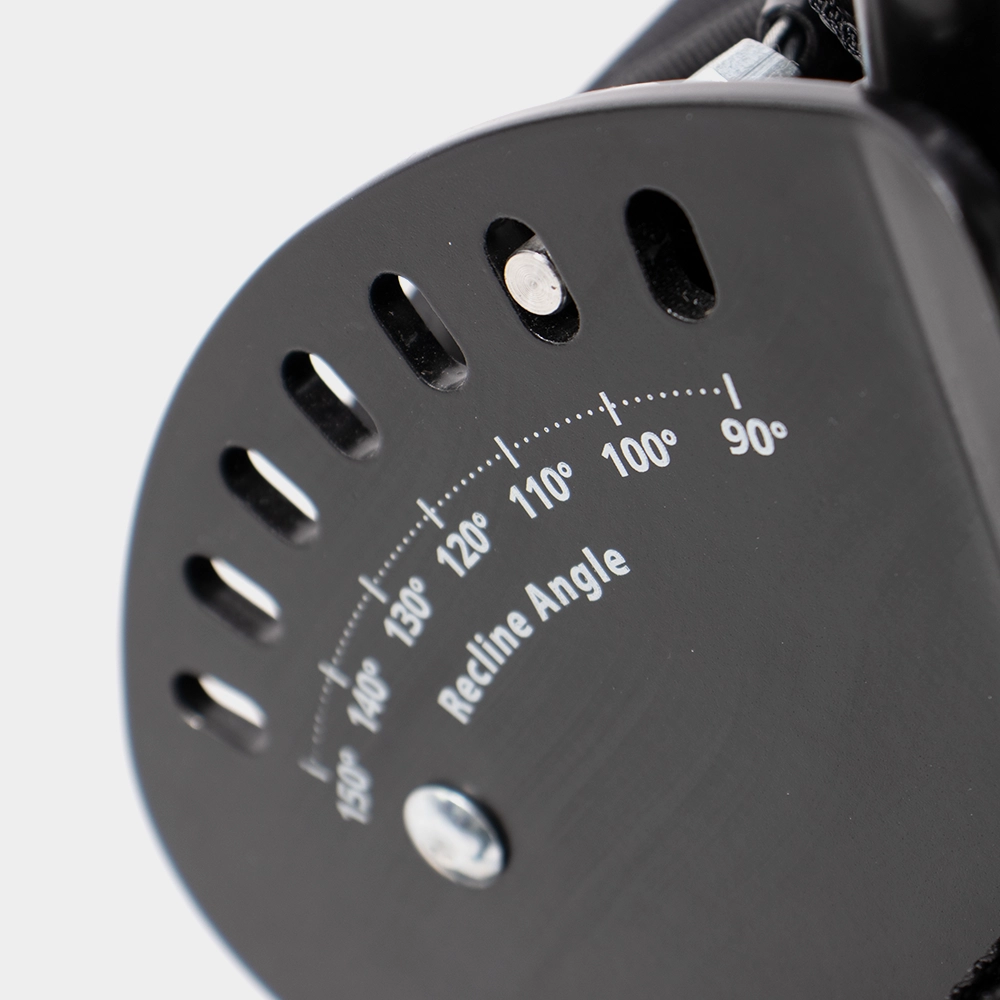

The adjustable backrest allows for easy angle adjustment, and a system of adjustable straps adapts the backrest to the curvature of the spine, thus meeting the special requirements of users. Also, a smooth and stepless adjustment system has been used for adjustable elements such as the backrest, seat and footrest, making it possible to adjust these elements in any range.

A wide selection of accessories allows the stroller to be customized to the individual needs of users, making it a complete solution for those with individual requirements.

Special features

  1. Smooth and Stepless Adjustment: The product components work together with reduced resistance.
  2. Increased Durability: Thanks to the smooth and stepless adjustment, the operation of the components is much smoother, resulting in minimizing undesired micro-movements of regulated elements.
  3. Quiet Operation: Operation between smoothly adjustable elements is significantly quieter compared to standard solutions.
  4. Lightweight: The product is made of lightweight materials, which positively affects its weight.
  5. Easy to use: Intuitive way of adjustment and easy assembly.
  6. 24-Month Warranty: We provide a 24-month warranty on the product. We also offer post-warranty service.
  7. Reflective elements: The product has reflective elements to ensure your safety.



Indications & Contraindications

INDICATIONS

It is recommended in the following cases:

  • Cerebral palsy (CP) – various types and forms.
  • Brain and spinal cord injuries of various etiologies with limb paresis, severe balance disturbances, and coordination impairments.
  • Demyelinating diseases (multiple sclerosis – MS, amyotrophic lateral sclerosis – ALS, and others).
  • Meningocele.
  • Muscle diseases with paresis and paralysis (including dystrophy, myasthenia gravis, polymyositis).
  • Genetic syndromes with limb paresis.
  • Degenerative and metabolic diseases of the nervous system.
  • Degenerative and rheumatic joint diseases.
  • Other diseases with limb paresis, paralysis, and musculoskeletal impairments.
  • After injuries, following traumatic brain injuries or spinal cord injuries with limb paresis and paralysis, particularly with quadriplegia (as part of the rehabilitation process or as permanent orthopedic support).

CONTRAINDICATIONS

  • Critical condition of the user,
  • Paralysis,
  • Deep sedation,
  • Unstable fractures with specific orthopedic recommendations, including spinal fractures,
  • Untreated deep vein thrombosis,
  • Hemodynamic instability,
  • Documented brain dysfunction while sitting in an upright position,
  • Severe inflammation of the cervical spine joints,
  • Pulmonary embolism,
  • Recent myocardial infarction within the last 24 hours,
  • Fresh postoperative wounds or non-healing wounds in the back, pelvic area, hip joints, and thighs,
  • Users with mental disorders should not be left unattended in the device.

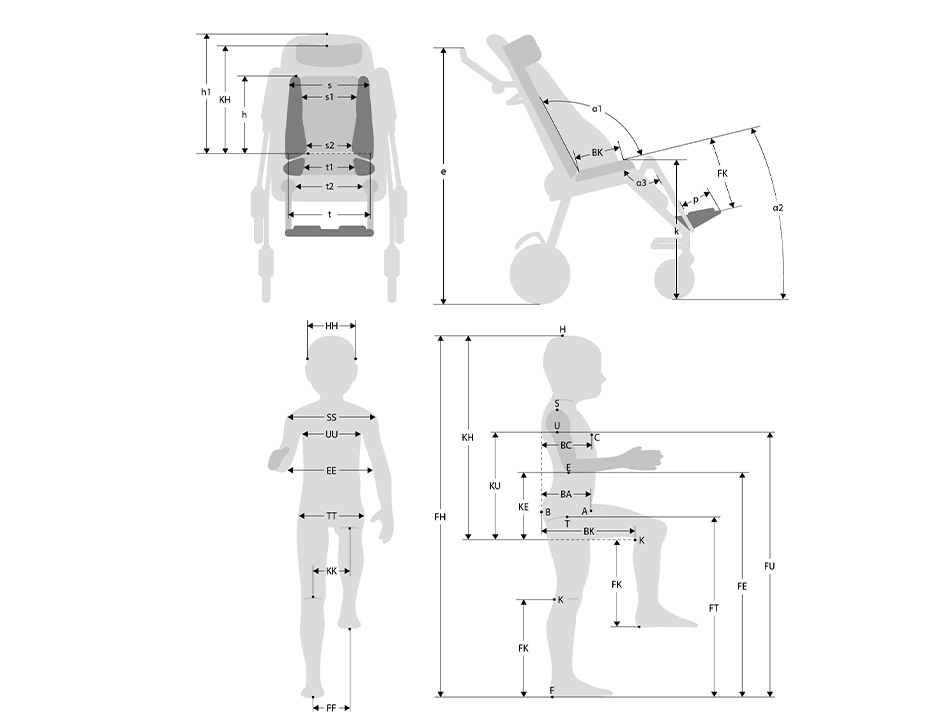

Sizes

Symbol Description Unit Size 1 Size 1a Size 2 Size 2a Size 3
FH approximate user height* [cm] 80 – 120 100 – 150 100 – 150 130 – 180 130 – 180
t seat width without lateral supports [cm] 31 31 37 37 43
t1 seat width with lateral support pads [cm] 25 25 27 27 33
t2 seat width at knee level [cm] 26 26 32 32 38
BK seat depth [cm] 21 – 30 29 – 37 29 – 37 35 – 45 35 – 45
k seat height from the ground** [cm] 52 – 54 54 – 56 54 – 56 59 – 61 59 – 61
s backrest width without lateral supports [cm] 28 28 34 34 40
s1 backrest width with lateral support inserts [cm] 25 25 28 28 34
s2 backrest width with inserts and lateral foam supports*** [cm] 17 17 22 22 26
h backrest height
(without extension)		 [cm] 52 59 59 66 66
h1 backrest height
(with extension)		 [cm] 63 – 68 70 – 75 70 – 75 77 – 82 78 – 83
KH headrest height [cm] 38 – 63 40 – 71 40 – 71 47 – 78 48 – 79
FK footrest length [cm] 19 – 27 23 – 35 23 – 35 26 – 41 26 – 41
p footrest platform length [cm] 17 17 19 19 22
e push handle height [cm] 78 – 120 75 – 124 75 – 124 75 – 124 75 – 124
α1 (alpha1) backrest tilt angle [°] 90 – 150 90 – 150 90 – 150 90 – 150 90 – 150
α2 (alpha2) seat tilt angle [°] 14 14 14 14 14
α3 (alpha3) footrest tilt angle [°] 90 – 162 90 – 162 90 – 162 90 – 162 90 – 162
max. user weight [kg] 55 55 75 75 75

Note: Dimensional tolerance in the table is +/- 1 cm.
* Height should not be the sole criterion for selecting the device.
** Seat height depends on seat depth.
*** Measurement refers to the lower section of the backrest.

Symbol Additional measurements Unit Size 1 Size 1a Size 2 Size 2a Size 3
KE armrest height from seat [cm] 21 – 33 21 – 36 21 – 36 21 – 36 21 – 36
armrest length [cm] 26 26 26 26 26
armrest width [cm] 5 5 5 5 5
EE distance between armrests [cm] 25 25 31 31 37
KU height of “short” chest support [cm] 22 – 35 22 – 38 22 – 38 22 – 38 22 – 38
height of “long” chest support [cm] 22 – 35 22 – 38 22 – 38 22 – 38 22 – 38
height of “wide” chest support [cm] 26 – 39 26 – 42 26 – 42 26 – 42 26 – 42
UU width between chest support [cm] 9 – 19 15 – 25 15 – 25 21 – 31 21 – 31

“Long” chest support, dimensions: length = 22 cm, height = 11 cm (metal plate height 7 cm)
“Short” chest support, dimensions: length = 18 cm, height = 11 cm (metal plate height 7 cm)
“Wide” chest support, dimensions: length = 16 cm, height = 20 cm (metal plate height 15 cm)

Note: The armrest and chest support are mounted on the same height adjustment rail. Using both accessories simultaneously limits the available height adjustment range for each accessory.

Weight and dimensions

Measurement Unit Size 1 Size 1a Size 2 Size 2a Size 3
Width* [cm] 58 58 64 64 70
Folded width* [cm] 58 58 64 64 70
Length [cm] 80 – 134 82 – 155 85 – 155 96 – 178 99 – 178
Folded length [cm] 98 104 104 116 116
Height [cm] 100 – 120 101 – 124 101 – 124 104 – 131 104 – 131
Folded height [cm] 41 43 45 45 46
Weight [kg] 20 20,5 21 23 24

Note: The dimension tolerance listed in the table is +/- 1 cm.
Note: Approximate value, depending on product configuration.
Note: In extreme handle positions, there may be interference with the backrest when adjusting its angle. In such cases, lift the handle temporarily while making adjustments.

* For a stroller with a drum brake, the width increases by 3 cm.

As a part of our permanent product improvement, Akces-MED reserves the right to change design and specifications without notice. Further, not all options and features offered are compatible with all configurations. Please refer to the user instruction manual for more information.
