SMART Standing Frame

SMART Standing Frame

Standing frame SMART™ combines the advantages of low weight, ease of use, robust design and stability. Due to its simplicity, the therapy and work become much more comfortable for the caregiver and family. Available in 8 sizes for both children and adults.

SKU: SMART Categories: 2. Static Standing Frames, Special Needs Aids Tags: akcesmed, akcesmed poland, standingframes, staticstandingframes Brand: Akces-Med Poland

Description

SMART™ gives the user a sense of safety and great freedom of movement within the upper limbs. The device has a very positive impact on his development as well as makes it easier to overcome the results from injury or mobility limitations.

The standing frame uses an innovative system UPRIGHT PRO™ – consisting of chest and pelvic braces with a very wide range of adjustment that enables to adopt the proper position.

The device is equipped with four swivel casters with brakes that allow to move the user within a flat.

Special features

Stable structure: The device ensures adequate stability and safety of user.
Easy to use: Intuitive way of adjustment and easy assembly.
24Month Warranty: We offer 24-month warranty on the product. We also provide after sales service.

Indications & Contraindications

INDICATIONS

It is recommended in the following cases:

Cerebral palsy (CP) – various types and forms.
Brain and spinal cord injuries of various etiologies with limb paresis, severe balance disturbances, and coordination impairments.
Demyelinating diseases (multiple sclerosis – MS, amyotrophic lateral sclerosis – ALS, and others).
Meningocele.
Muscle diseases with paresis and paralysis (including dystrophy, myasthenia gravis, polymyositis).
Genetic syndromes with limb paresis.
Degenerative and metabolic diseases of the nervous system.
Degenerative and rheumatic joint diseases.
Other diseases with limb paresis, paralysis, and musculoskeletal impairments.
After injuries, following traumatic brain injuries or spinal cord injuries with limb paresis and paralysis, particularly with quadriplegia (as part of the rehabilitation process or as permanent orthopedic support).

CONTRAINDICATIONS

During standing process, the person being stood must be observed. In case of side effects such as paleness, sweating, or fainting, joint overloading and resulting body deformations, the therapy should be stopped. Further steps should be consulted with a specialist doctor or physiotherapist who prescribed the aid.

Absolute contraindication to standing therapy is the critical condition of the user.

Relative contraindications to standing therapy:

resting arterial hypertension above 200/110 mmHg, pulmonary hypertension, heart rhythm disorders, unstable asthma, unstable metabolic disorders, moderate stage of heart valve disease.
Any condition, such as healing fracture or severe osteoporosis, that prevents weight-bearing in any way.
Fracture with incomplete healing, unless approved by a doctor.
Postoperative joint load restrictions.
Pain associated with standing in the stander (caused by dislocation or hip dislocation, excessive stretching of soft tissues, excessive pressure). Dislocation or dislocation of the hip joint without pain is not a contraindication.

People with significant flexion in the hip or knee joints, as well as with ankle joint contractures, may not be able to use the stander. Caution should be taken to ensure that the position in the device does not cause excessive pressure or stretching of the diseased areas of the body. In such cases, standing therapy may be contraindicated until a greater range of motion is achieved in the contracted joints.

For individuals with impaired circulatory system (resting arterial hypertension above 200/110 mmHg, pulmonary hypertension, heart rhythm disorders, moderate stage of heart valve disease); respiratory system (unstable asthma) and unstable metabolic disorders, close monitoring of the user during standing position is necessary to prevent serious complications. This includes particularly monitoring blood pressure, heart rate, and any symptoms of orthostatic hypertension.

Sizes

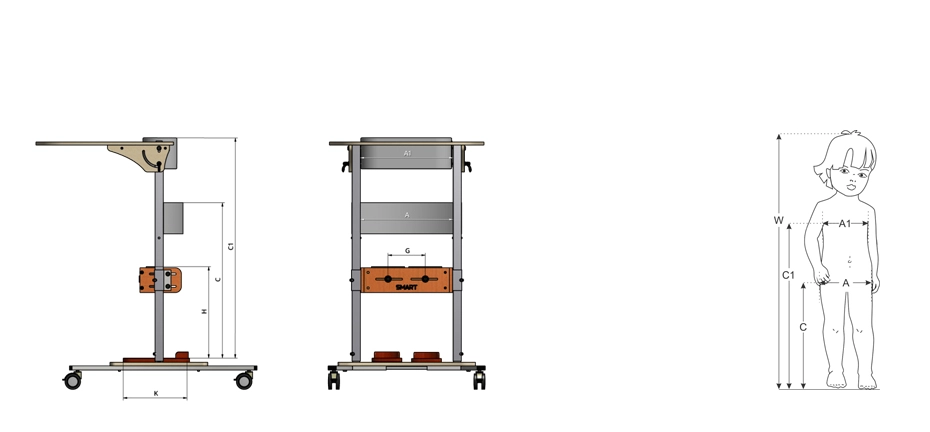

Symbol	Measurement	Unit	Size
Symbol	Measurement	Unit	0a***	1***	1a***	2***	2a	3***	3a	4***
W	Indicative user height**	[cm]	50 – 70	70 – 100	70 – 100	90 – 130	90 – 130	110 – 170	110 – 170	140 – 200
A	Pelvic support width	[cm]	22	22	28	28	37	37	44	44
C	Pelvic support height	[cm]	18 – 44	24 – 68	24 – 68	28 – 86	28 – 86	30 – 107	30 – 107	33 – 129
A₁	Chest support width	[cm]	20	20	26	26	35	35	42	42
C₁	Chest support height	[cm]	41 – 56	56 – 76	56 – 76	71 – 98	71 – 98	86 – 121	86 – 121	106 – 145
	Pelvic belt perimeter	[cm]	49 – 61	49 – 61	61 – 80	61 – 80	80 – 105	80 – 105	101 – 124	101 – 124
	Chest belt perimeter	[cm]	50 – 64	50 – 64	64 – 76	64 – 76	80 – 105	80 – 105	95 – 125	95 – 125
G	Knee supports width	[cm]	8 – 10,5	8 – 10,5	11 – 14	11 – 14	14 – 20	14 – 20	16,5 – 25	16,5 – 25
H	Knee supports height*	[cm]	11 – 35	11 – 55	12 – 57	13 – 72	14 – 78	14 – 88	14 – 96	14 – 98
K	Footer length	[cm]	17	17	20	20	24	24	30	30
	Max. user weight	[kg]	35	35	55	55	75	75	95	95

Note: Measurement tolerance range is +/- 1 cm / ½ in.
* Knee supports height depends on tray height.
** This measurement cannot be the main parameter while choosing the product size.
*** Size unavailable.

WEIGHT AND DIMENSIONS

Measurement	Unit	0a	1	1a	2	2a	3	3a	4
Width	[cm]	50	50	60	60	70	70	78	78
Length	[cm]	63	63	70	70	87	87	91	91
Height	[cm]	55	70	70	75	75	92	92	110
Weight	[kg]	10	10	12	13	19,8	20	24,4	26

Note: Measurement tolerance range is +/- 1 cm / ½ in.
Note: Approximate values, depending on the product configuration.

As a part of our permanent product improvement, Akces-MED reserves the right to change design and specifications without notice. Further, not all options and features offered are compatible with all configurations. Please refer to the user instruction manual for more information.
