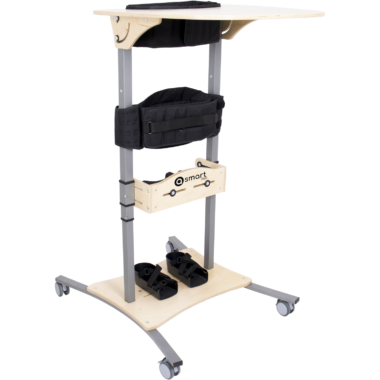

SMART PRO™ is a modern standing frame that enables a user to adopt an upright position, is easy to use, highly durable and stable. Through the use of innovative, smooth, and stepless adjustment, we have reduced the number of size variations from 8 to 5 while maintaining the full range of adjustments, at the same time increasing the comfort and ability of the stander to adapt to the user. SMART PRO™ grows with the user.
SMART PRO™ is a modern standing frame that enables a user to adopt an upright position, is easy to use, highly durable and stable. Through the use of innovative, smooth, and stepless adjustment, we have reduced the number of size variations from 8 to 5 while maintaining the full range of adjustments, at the same time increasing the comfort and ability of the stander to adapt to the user. SMART PRO™ grows with the user.
The static standing frame SMART PRO™ not only provides the user with a sense of security but also freedom of movement in the upper limbs, encouraging activity and independent overcoming of mobility limitations resulting from injuries or illnesses.

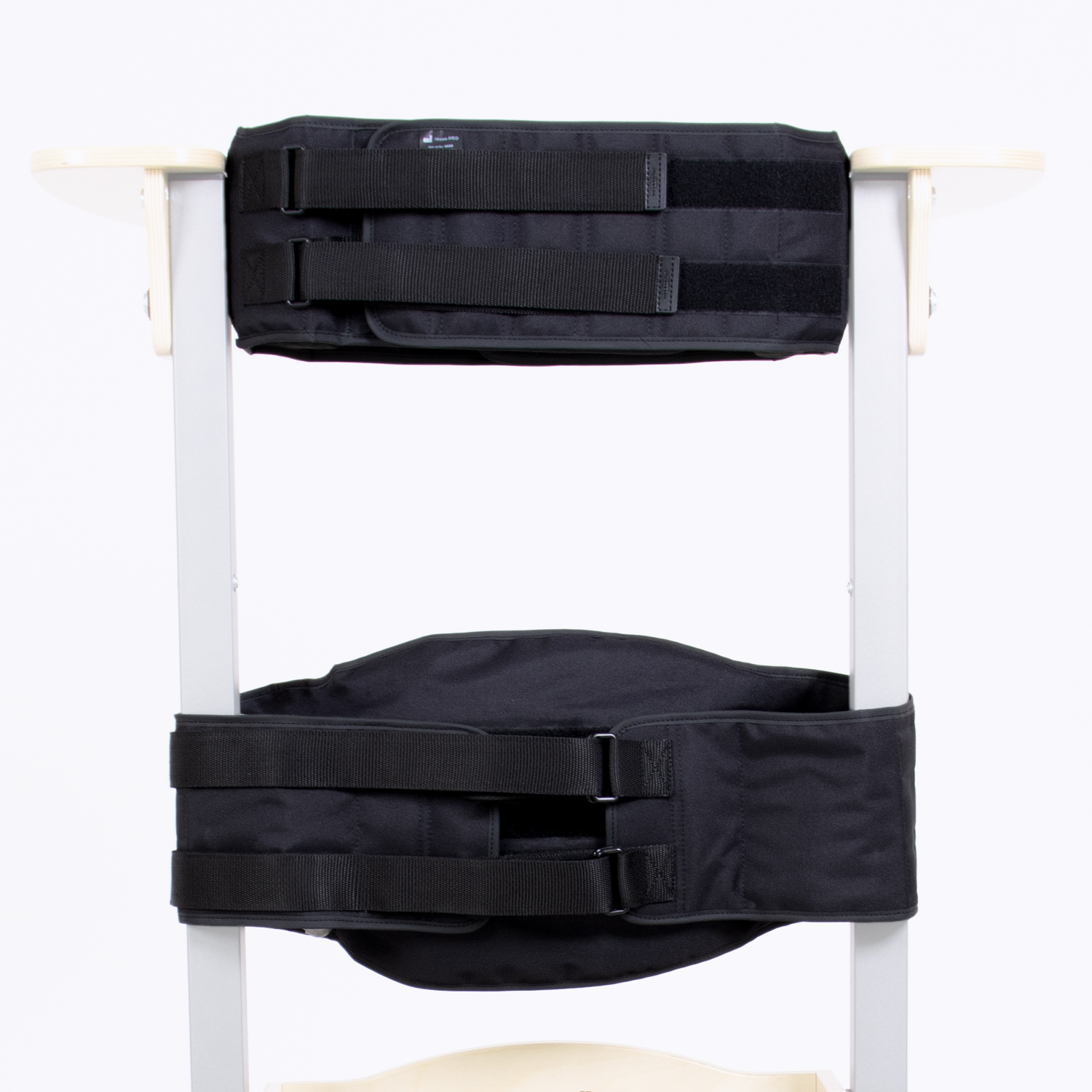

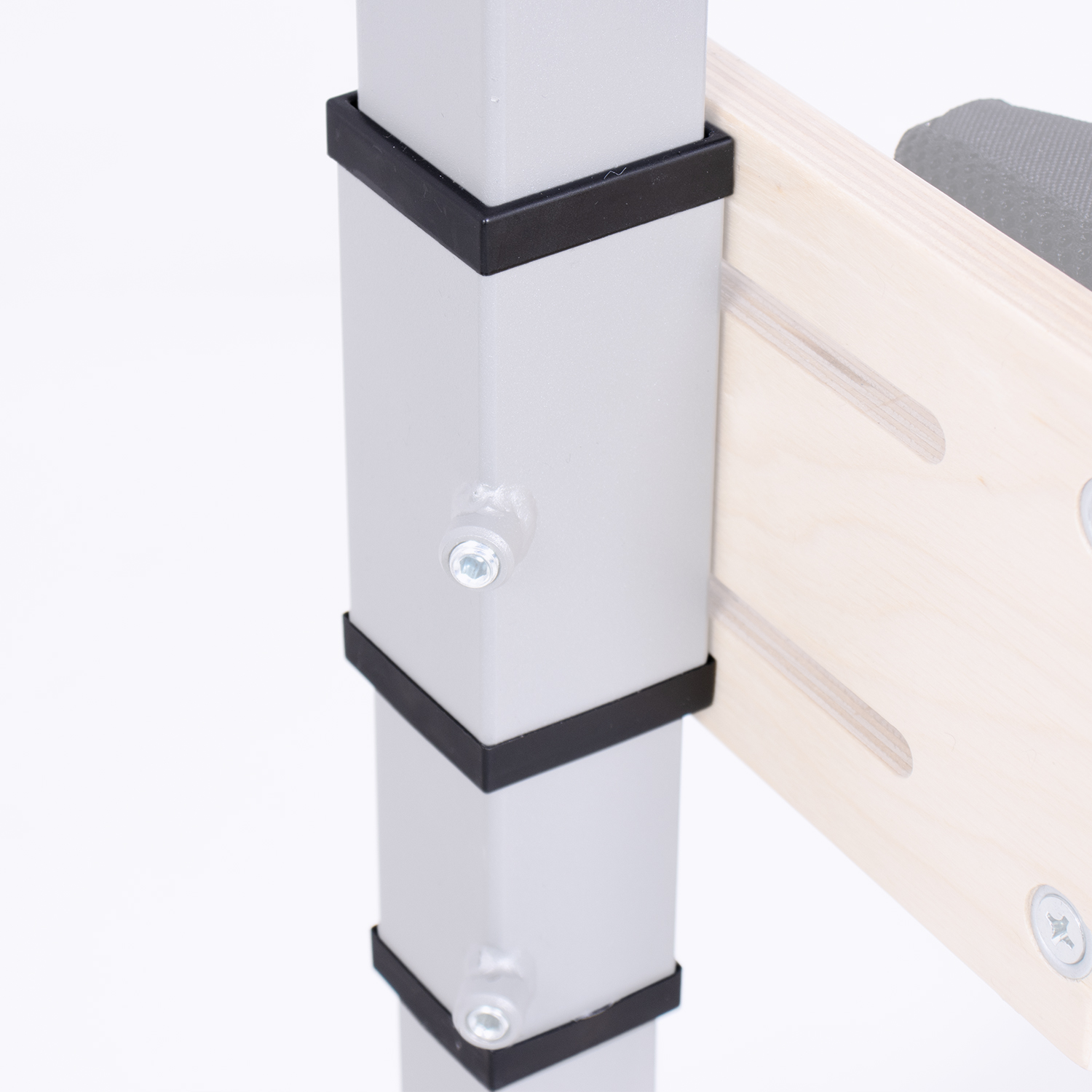

Additionally, the adjustment of knee supports and the height of the standing frame is now done in a smooth and stepless way, allowing quick adaptation of the stander to the user’s individual needs. The innovative UPRIGHT PRO™ system consists of a chest and pelvic belt, offering broad adjustment possibilities. Strong Velcro straps used in the belts guarantee stability, safety, and easy, quick adjustment. The hip belt features a clever design, enabling better control over pelvic rotation and correcting the user’s position in the frontal plane through smooth lateral pelvic shifting (to the right or left), according to individual needs.
Integrated 4 small swivel wheels with brakes allow easy movement for the user, further enhancing the functionality of the SMART PRO™ standing frame.
Special features
Smooth and Stepless Adjustment: The product components work together with reduced resistance.
Increased Durability: Thanks to the use of smooth and stepless adjustment, the operation of components is much smoother, which translates into minimizing undesired micro-movements of adjustable elements.
Quiet Operation: Operation between smoothly adjustable elements is significantly quieter compared to standard solutions.
Easy operation: Intuitive adjustment and simple installation.
Stable construction: The device ensures proper stabilization and user safety.
24-Month Warranty: We offer 24-month warranty on the product. We also provide after sales service.
Indications & Contraindications
INDICATIONS
It is recommended in the following cases:
Cerebral palsy (CP) – various types and forms.
Brain and spinal cord injuries of various etiologies with limb paresis, severe balance disturbances, and coordination impairments.
Muscle diseases with paresis and paralysis (including dystrophy, myasthenia gravis, polymyositis).
Genetic syndromes with limb paresis.
Degenerative and metabolic diseases of the nervous system.
Degenerative and rheumatic joint diseases.
Other diseases with limb paresis, paralysis, and musculoskeletal impairments.
After injuries, following traumatic brain injuries or spinal cord injuries with limb paresis and paralysis, particularly with quadriplegia (as part of the rehabilitation process or as permanent orthopedic support).
CONTRAINDICATIONS
During standing process, the person being stood must be observed. In case of side effects such as paleness, sweating, or fainting, joint overloading and resulting body deformations, the therapy should be stopped. Further steps should be consulted with a specialist doctor or physiotherapist who prescribed the aid.
Absolute contraindication to standing therapy is the critical condition of the user.
Any condition, such as healing fracture or severe osteoporosis, that prevents weight-bearing in any way.
Fracture with incomplete healing, unless approved by a doctor.
Postoperative joint load restrictions.
Pain associated with standing in the stander (caused by dislocation or hip dislocation, excessive stretching of soft tissues, excessive pressure). Dislocation or dislocation of the hip joint without pain is not a contraindication.
People with significant flexion in the hip or knee joints, as well as with ankle joint contractures, may not be able to use the stander. Caution should be taken to ensure that the position in the device does not cause excessive pressure or stretching of the diseased areas of the body. In such cases, standing therapy may be contraindicated until a greater range of motion is achieved in the contracted joints.
For individuals with impaired circulatory system (resting arterial hypertension above 200/110 mmHg, pulmonary hypertension, heart rhythm disorders, moderate stage of heart valve disease); respiratory system (unstable asthma) and unstable metabolic disorders, close monitoring of the user during standing position is necessary to prevent serious complications. This includes particularly monitoring blood pressure, heart rate, and any symptoms of orthostatic hypertension.

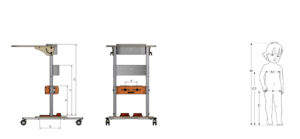

Sizes
Symbol
Measurement
Unit
Size
1
2
3
4
5
W
Indicative user height**
[cm]
50 – 70
70 – 100
90 – 130
110 – 170
140 – 200
A
Pelvic support width
[cm]
22
28
37
44
44
C
Pelvic support height
[cm]
18 – 44
24 – 68
28 – 86
30 – 107
33 – 129
A1
Chest support width
[cm]
20
20 – 26
26 – 35
35 – 42
42
C1
Chest support height
[cm]
41 – 56
56 – 76
71 – 98
86 – 121
106 – 145
Pelvic belt perimeter
[cm]
49 – 61
61 – 80
80 – 105
101 – 124
101 – 124
Chest belt perimeter
[cm]
50 – 64
64 – 76
80 – 105
95 – 125
95 – 125
G
Knee supports width
[cm]
8 – 10,5
11 – 14
14 – 20
16,5 – 25
16,5 – 25
H
Knee supports height*
[cm]
11 – 35
12 – 57
14 – 78
14 – 96
14 – 98
K
Footer length***
[cm]
16
19
23
26
26
Max. user weight
[kg]
35
55
75
95
95
Note: Measurement tolerance range is +/- 1 cm / ½ in.
* Knee supports height depends on tray height.
** This measurement cannot be the main parameter while choosing the product size.

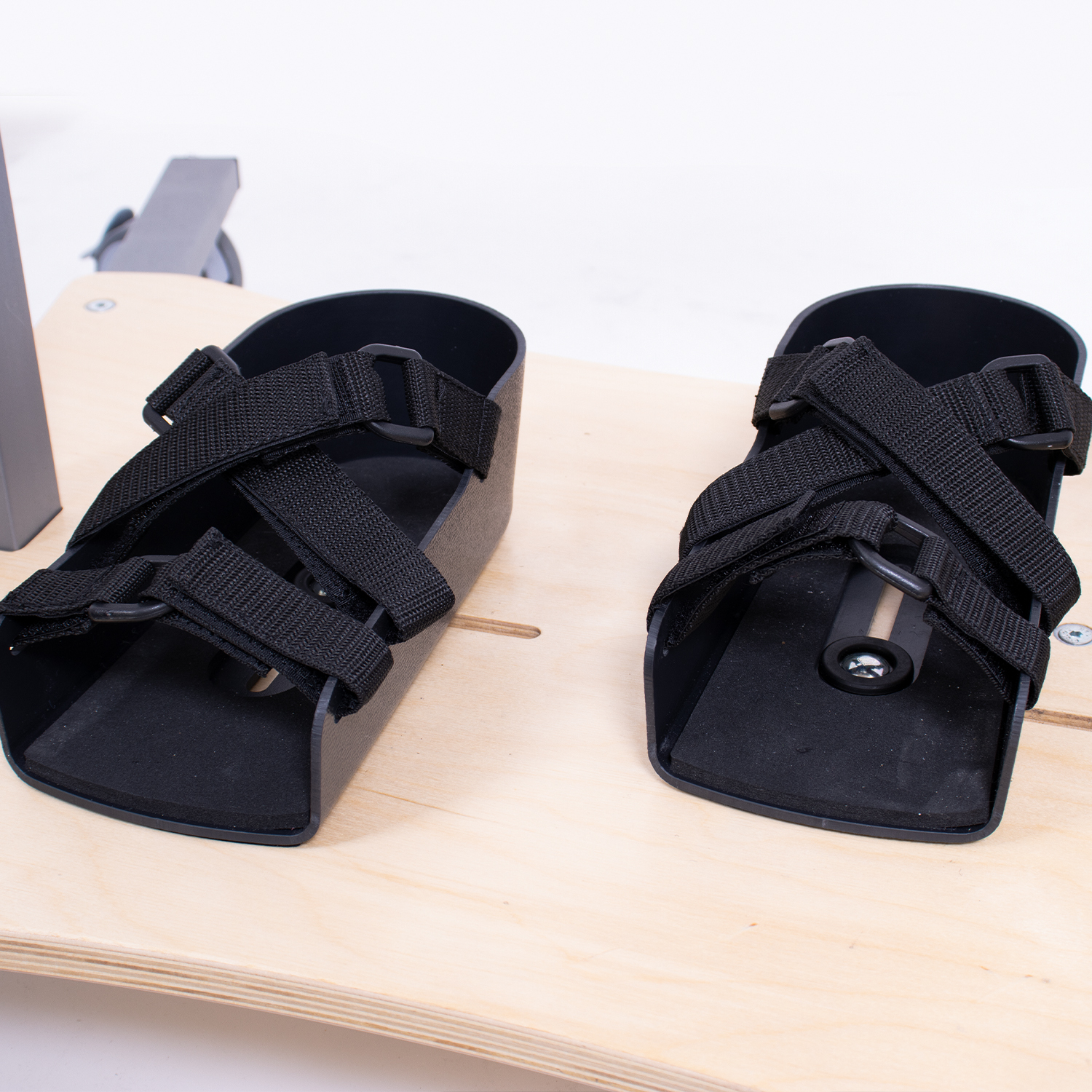

*** There are 7 sizes of footers available. Details below:
Footer size
S1
S2
XS
7,5 cm
9 cm
S
7,5 cm
9,5 cm
0
7,5 cm
9 cm
1
7,5 cm
9,5 cm
2
8,5 cm
10 cm
3
9 cm
12 cm
4
11 cm
14,5 cm
Compatibility table
Standing frame size
Footers size
(length)
XS
(16 cm)
S
(19 cm)
0
(16 cm)
1
(19 cm)
2
(23 cm)
3
(26 cm)
4
(30 cm)
1
●
+
✕
✕
✕
✕
✕
2
+
+
+
●
+
✕
✕
3
+
+
+
+
●
+
+
4
+
+
+
+
+
●
+
5
+
+
+
+
+
●
+
KEY:
● standard equipment
✕ no possibility of assembly
+ SIZES OF FEET THAT ARE STANDARD EQUIPMENT OF THE STANDING FRAME. IT IS POSSIBLE TO CHANGE THE SIZE FOR AN EXTRA FEE WHEN PLACING AN ORDER
WEIGHT AND DIMENSIONS
Measurement
Unit
1
2
3
4
5
Width
[cm]
50
60
70
78
78
Length
[cm]
63
70
87
91
91
Height
[cm]
55
75
92
92
110
Weight
[kg]
10
13
20
24,4
26
Note: Measurement tolerance range is +/- 1 cm / ½ in. Note: Approximate values, depending on the product configuration.
As a part of our permanent product improvement, Akces-MED reserves the right to change design and specifications without notice. Further, not all options and features offered are compatible with all configurations. Please refer to the user instruction manual for more information.
