RACER® Special Stroller

RACER® Special Stroller

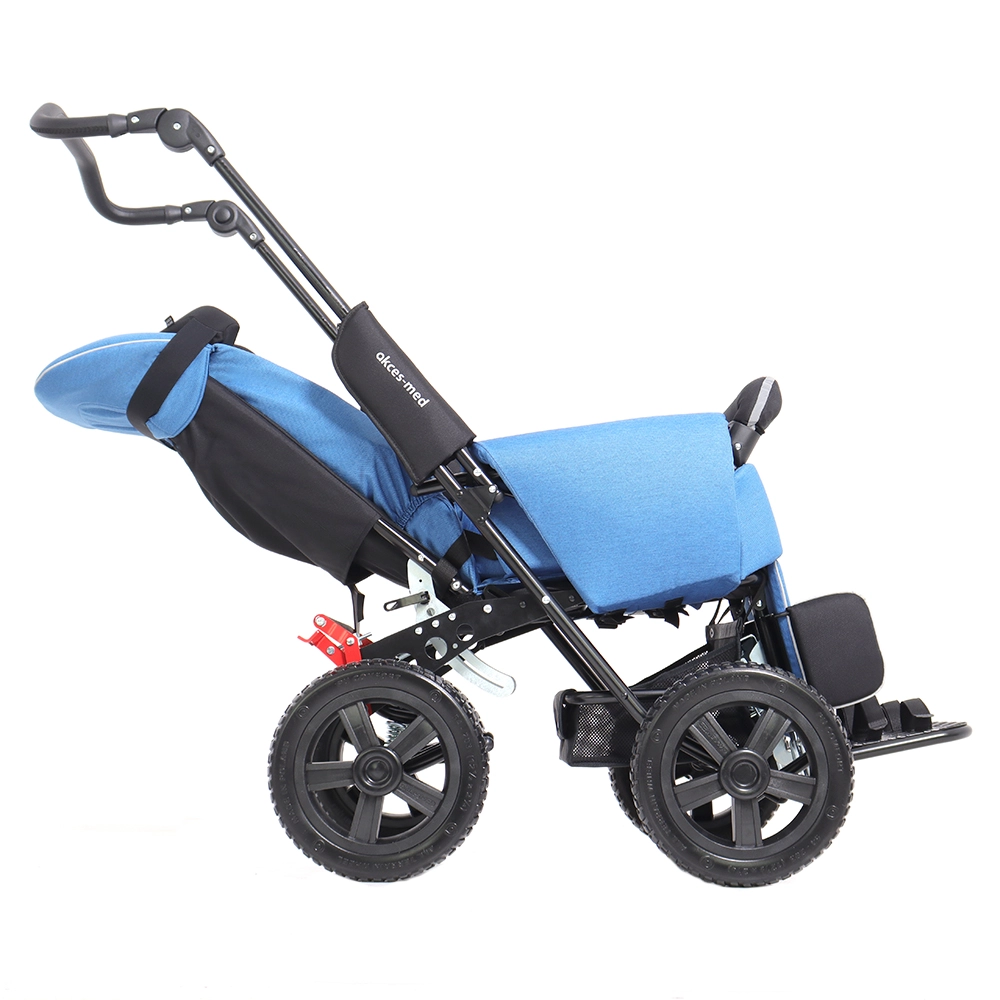

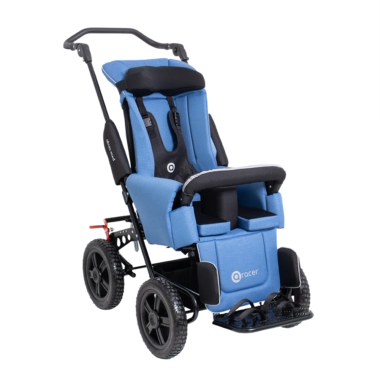

Special needs stroller RACER^® is used for children whose movement possibilities are limited. It may be used in the rehabilitation centre and at user’s home. Stable construction perfectly stabilizes the user and it gives him a sense of security. What is more, it enables the correct sitting position and the child has a chance to rest in the reclining position.

Description

Parent is able to take the child to rehabilitation and go for a walk thanks to which the child has the possibility of spending time outdoor. There is no doubt that this special stroller makes life easier for parent regarding care and feeding and, moreover, the child can actively spend time with his family. It is equipped with a vast array of adjustment thanks to which the user feels comfortable in the device.

Additionally, the transport of this buggy is easy due to collapsible construction. Concerning upholstery, it is made of breathable and washable fabrics.

Special features

Smooth and Stepless Adjustment: The product components work together with reduced resistance.
Increased Durability: Thanks to the smooth and stepless adjustment, the operation of the components is much smoother, resulting in minimizing undesired micro-movements of regulated elements.
Quiet Operation: Operation between smoothly adjustable elements is significantly quieter compared to standard solutions.
24-month warranty: We offer 24-month warranty on the product. We also provide after sales service.

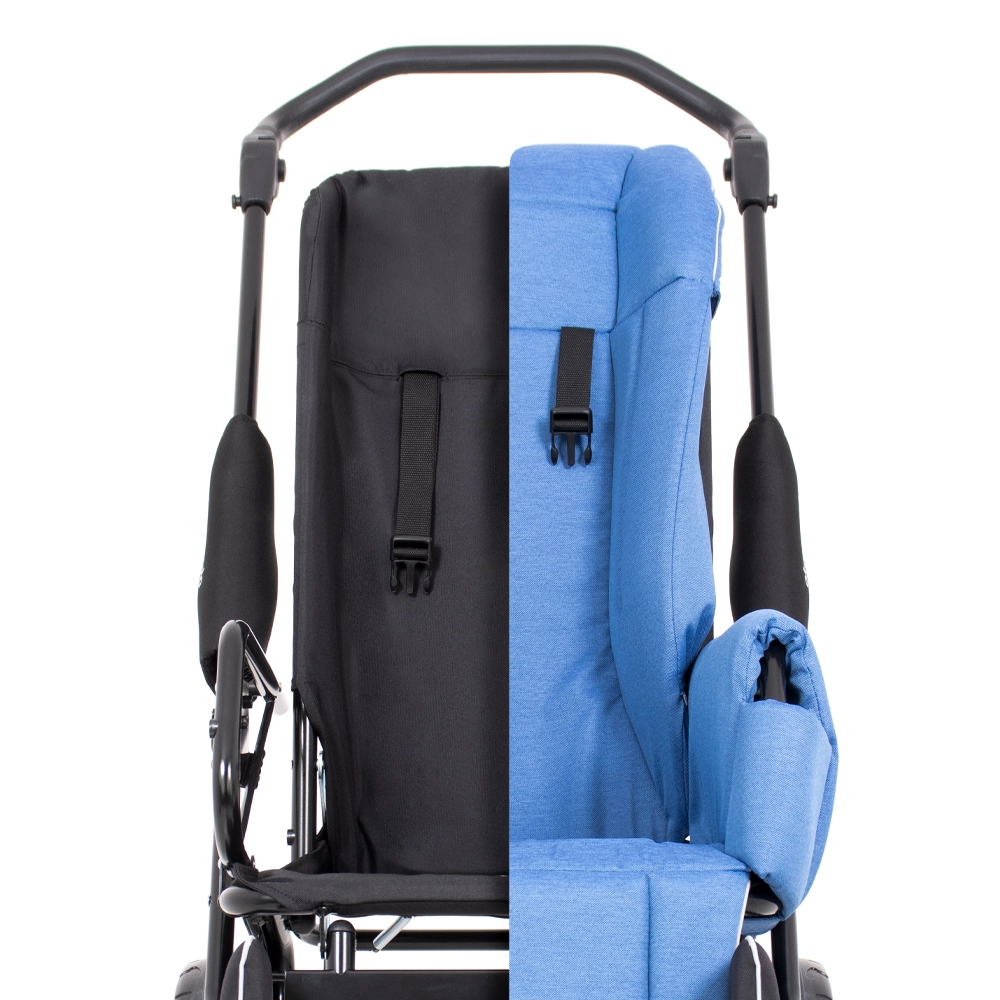

Two-piece upholstery with lateral stabilization system: The device is equipped with technical upholstery and comfortable upholstery (washable HYDRO™ upholstery or breathable ATMO™ upholstery).
Easy to use: Intuitive way of adjustment and easy assembly.
Stable structure: The device ensures adequate stability and safety of user.
Reflective elements: The product has reflective elements to ensure your safety.

Indications & Contraindications

INDICATIONS

It is recommended in the following cases:

Cerebral palsy (CP) – various types and forms.
Brain and spinal cord injuries of various etiologies with limb paresis, severe balance disturbances, and coordination impairments.
Demyelinating diseases (multiple sclerosis – MS, amyotrophic lateral sclerosis – ALS, and others).
Meningocele.
Muscle diseases with paresis and paralysis (including dystrophy, myasthenia gravis, polymyositis).
Genetic syndromes with limb paresis.
Degenerative and metabolic diseases of the nervous system.
Degenerative and rheumatic joint diseases.
Other diseases with limb paresis, paralysis, and musculoskeletal impairments.
After injuries, following traumatic brain injuries or spinal cord injuries with limb paresis and paralysis, particularly with quadriplegia (as part of the rehabilitation process or as permanent orthopedic support).

CONTRAINDICATIONS

Critical condition of the user,
Paralysis,
Deep sedation,
Unstable fractures with specific orthopedic recommendations, including spinal fractures,
Untreated deep vein thrombosis,
Hemodynamic instability,
Documented brain dysfunction while sitting in an upright position,
Severe inflammation of the cervical spine joints,
Pulmonary embolism,
Recent myocardial infarction within the last 24 hours,
Fresh postoperative wounds or non-healing wounds in the back, pelvic area, hip joints, and thighs,
Users with mental disorders should not be left unattended in the device.

Sizes

Symbol	Measurement	Unit	Size 1	Size 2	Size 3	Size 4
W	Indicative user height*	[cm]	< 120	< 150	< 180	< 180
A	Seat width	[cm]	35	36	39	46
L	Seat depth	[cm]	34	42	42	45
C	Headrest height	[cm]	58	58 – 62	72 – 80	70 – 80
E	Backrest width	[cm]	18 (with side supports) 30 (without side supports)	20 (with side supports) 32 (without side supports)	20 (with side supports) 36 (without side supports)	25 (with side supports) 41 (without side supports)
F	Footrests length	[cm]	30 – 33	32 – 38	37 – 45	37 – 45
C₁	Backrest height	[cm]	58	62	80	80
L₁	Seat depth to the abduction block	[cm]	15 – 18	22 – 25	28 – 32	30 – 33
	Footer length	[cm]	23	23	25	25
	Push handle height	[cm]	78 – 120	82 – 124	72 – 124	74 – 124
Y	Seat tilt angle**	[°]	15	15	15	15
X	Backrest tilt angle	[°]	90 – 135	90 – 140	90 – 140	90 – 140
Z	Footplate tilt angle	[°]	100 – 120	100 – 125	100 – 120	100 – 120
	Max. user weight	[kg]	35	50	75	90

Note: Measurement tolerance range is +/- 1 cm / ½ in.
* This measurement cannot be the main parameter while choosing the product size.
** Value measured with the seat loaded.

WEIGHT AND DIMENSIONS

Measurement	Unit	Size 1	Size 2	Size 3	Size 4
Width	[cm]	62	64	70	76
Length	[cm]	102 – 125	118 – 140	135 – 162	135 – 162
Height	[cm]	103	105	125	125
Width after folding	[cm]	62	64	70	76
Length after folding	[cm]	103	110	125	125
Height after folding	[cm]	43	54	58	58
Weight***	[kg]	24	27	29,4	30

*** The given weight includes a frame with wheels and upholstery. The weight may vary depending on the additional accessories the stroller can be equipped with.

Note: Measurement tolerance range is +/- 1 cm / ½ in.
Note: Approximate values, depending on the product configuration.
Note: In extreme positions of the handle, it may collide with the backrest when changing its angle. In such cases, the handle should be raised while adjusting.

As a part of our permanent product improvement, Akces-MED reserves the right to change design and specifications without notice. Further, not all options and features offered are compatible with all configurations. Please refer to the user instruction manual for more information.

How to Measure User?
