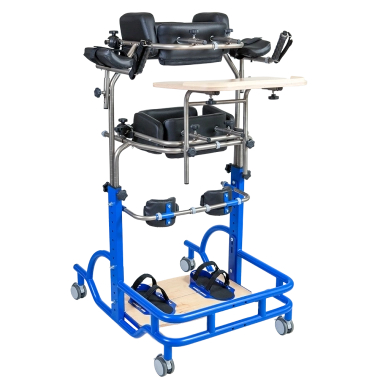

PARAMOBIL Standing Frame

PARAMOBIL™ is the standing frame whose the main feature is its multi-functionality. Basically it is the only device in the market that combines 3 functions. The product gives us an opportunity to stand in the static mode, move in the dynamic mode, and also perform the leg exercises in the rehabilitation mode.

SKU: PARAMOBIL Categories: 2. Static Standing Frames, Special Needs Aids Tags: akcesmed, akcesmed poland, standingframes, staticstandingframes Brand: Akces-Med Poland

Description

Static mode is perfect in the stage of early rehabilitation and in situation when dysfunctions exclude the possibility of independent movement. The main goal of the static mode is to improve the physiological processes and oxygenate the body of the user.
Dynamic mode is very helpful in regaining or acquiring new skills related to the movement. Lower limbs separator prevents the crossing of the legs while walking.
Rehabilitation mode works very well as a supplement of a complex therapy.

Thanks to the ergonomic, and adjustable knee supports, the product is perfect in rehabilitation centers and neurological wards where even the user in a coma can be subject to the process of upright standing.

Through its versatility, rich equipment, and wide range of adjustments, the PARAMOBIL™ can meet the expectations of users with various needs and dysfunctions. The device can be purchased as a complete unit with every function or in a version most fitting your needs. The choice is yours and we will help you with this!

Special features

Stable structure: The device ensures adequate stability and safety of user.
Easy to use: Intuitive way of adjustment and easy assembly.
3 in 1: The product has 3 utility functions for use in 1 single device.
24Month Warranty: We offer 24-month warranty on the product. We also provide after sales service.

Indications & Contraindications

INDICATIONS

It is recommended in the following cases:

Cerebral palsy (CP) – various types and forms.
Brain and spinal cord injuries of various etiologies with limb paresis, severe balance disturbances, and coordination impairments.
Demyelinating diseases (multiple sclerosis – MS, amyotrophic lateral sclerosis – ALS, and others).
Meningocele.
Muscle diseases with paresis and paralysis (including dystrophy, myasthenia gravis, polymyositis).
Genetic syndromes with limb paresis.
Degenerative and metabolic diseases of the nervous system.
Degenerative and rheumatic joint diseases.
Other diseases with limb paresis, paralysis, and musculoskeletal impairments.
After injuries, following traumatic brain injuries or spinal cord injuries with limb paresis and paralysis, particularly with quadriplegia (as part of the rehabilitation process or as permanent orthopedic support).

CONTRAINDICATIONS

During standing process, the person being stood must be observed. In case of side effects such as paleness, sweating, or fainting, joint overloading and resulting body deformations, the therapy should be stopped. Further steps should be consulted with a specialist doctor or physiotherapist who prescribed the aid.

Absolute contraindication to standing therapy is the critical condition of the user.

Relative contraindications to standing therapy:

resting arterial hypertension above 200/110 mmHg, pulmonary hypertension, heart rhythm disorders, unstable asthma, unstable metabolic disorders, moderate stage of heart valve disease.
Any condition, such as healing fracture or severe osteoporosis, that prevents weight-bearing in any way.
Fracture with incomplete healing, unless approved by a doctor.
Postoperative joint load restrictions.
Pain associated with standing in the stander (caused by dislocation or hip dislocation, excessive stretching of soft tissues, excessive pressure). Dislocation or dislocation of the hip joint without pain is not a contraindication.

People with significant flexion in the hip or knee joints, as well as with ankle joint contractures, may not be able to use the stander. Caution should be taken to ensure that the position in the device does not cause excessive pressure or stretching of the diseased areas of the body. In such cases, standing therapy may be contraindicated until a greater range of motion is achieved in the contracted joints.

For individuals with impaired circulatory system (resting arterial hypertension above 200/110 mmHg, pulmonary hypertension, heart rhythm disorders, moderate stage of heart valve disease); respiratory system (unstable asthma) and unstable metabolic disorders, close monitoring of the user during standing position is necessary to prevent serious complications. This includes particularly monitoring blood pressure, heart rate, and any symptoms of orthostatic hypertension.

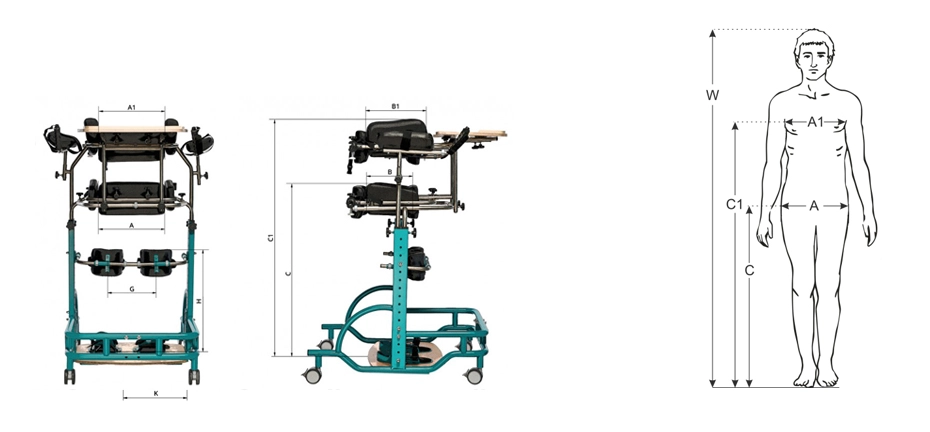

Sizes

Symbol	Measurement	Unit	Size 0	Size 1	Size 2	Size 3
W	Indicative user height*	[cm]	90 – 150	110 – 170	130 – 190	130 – 200
A	Pelvic support width	[cm]	25	31	37	42
A₁	Chest support width	[cm]	23	30	35	40
C	Pelvic support height	[cm]	63 – 90	77 – 114	86 – 122	91 – 128
C₁	Chest support height	[cm]	75 – 112	94 – 131	103 – 147	107 – 159
B	Pelvic support depth	[cm]	15 – 24	15 – 28	19 – 31	22 – 34
B₁	Chest support depth	[cm]	15 – 24	22 – 34	24 – 36	27 – 38
G	Knee supports spacing	[cm]	17 – 29	17 – 29	17 – 29	23 – 35
H	Knee supports height	[cm]	25 – 55	32 – 60	34 – 70	39 – 79
	Footplate length	[cm]	23	27	29	30,5
	Maximum user weight	[kg]	40	60	90	120

Note: Measurement tolerance range is +/- 1 cm / ½ in.
* This measurement cannot be the main parameter while choosing the product size.

WEIGHT AND DIMENSIONS

Measurement	Unit	Size 0	Size 1	Size 2	Size 3
Width	[cm]	59	70	70	76
Length	[cm]	75	90	90	93
Height	[cm]	90	83	93	98
weight	[kg]	22	39	42	43

Note: Measurement tolerance range is +/- 1 cm / ½ in.
Note: Approximate values, depending on the product configuration.
* As a part of our permanent product improvement, Akces-MED reserves the right to change design and specifications without notice. Further, not all options and features offered are compatible with all configurations. Please refer to the user instruction manual for more information.
