Description

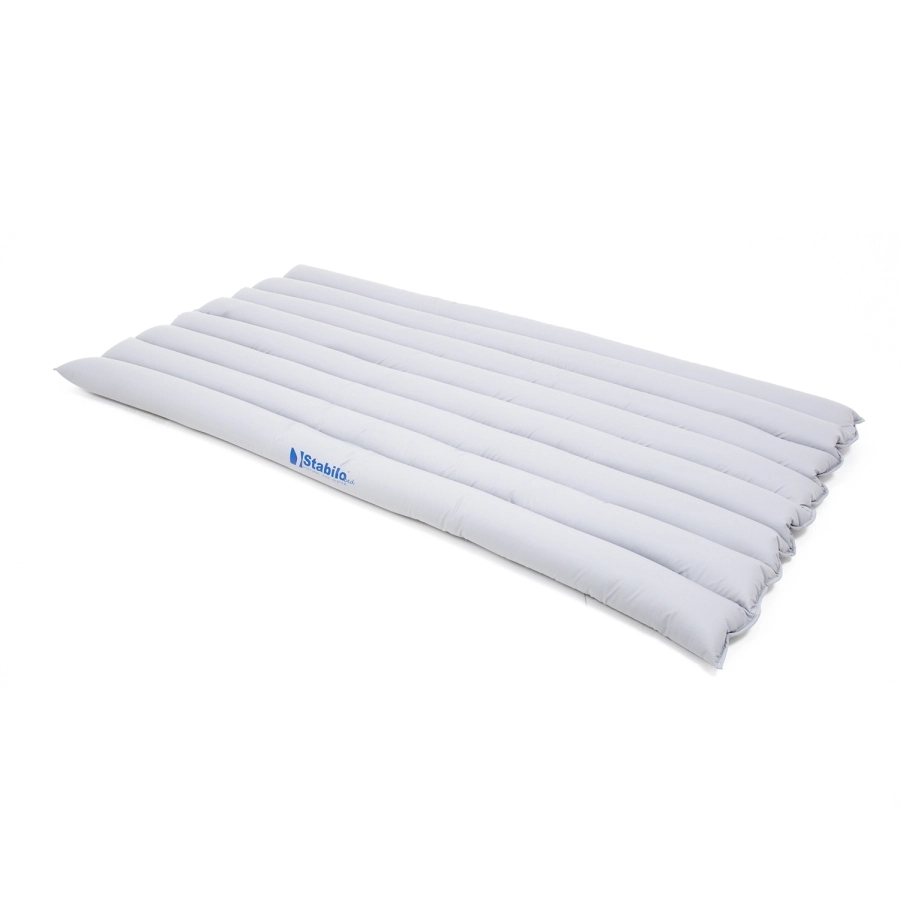

Modular mattress with STABILObed® cushions attachment function
The modular mattress enriches the STABILObed® range of products. The modular design based on 8 elongated segments filled with granulate is an invaluable support for the prevention of bed sores and during long-term care. Thanks to this design, PureMed™ material and spacer fabric, the mattress cover perfectly adjusts to the shape of the user’s body. The features of the cover and special openings between the segments provide a proper ventilation of the body and at the same time liquids such as sweat, blood or urine are not be able to get through the cover inside the mattress. PureMed™ is a material that is very safe for users and also easy to disinfect. Due to the fact that it contains antibacterial components based on Silver Zeolite, PureMed™ material is perfect for multiple use by different patients in hospitals or rehabilitation centers as well as in cases of a high risk of infection. PureMed™ is light, soft and easy to shape. Hygienically certified by the National Institute of Public Health, it also has OEKO-TEX STANDARD 100® certification which is granted to exceptionally skin-friendly parameters.

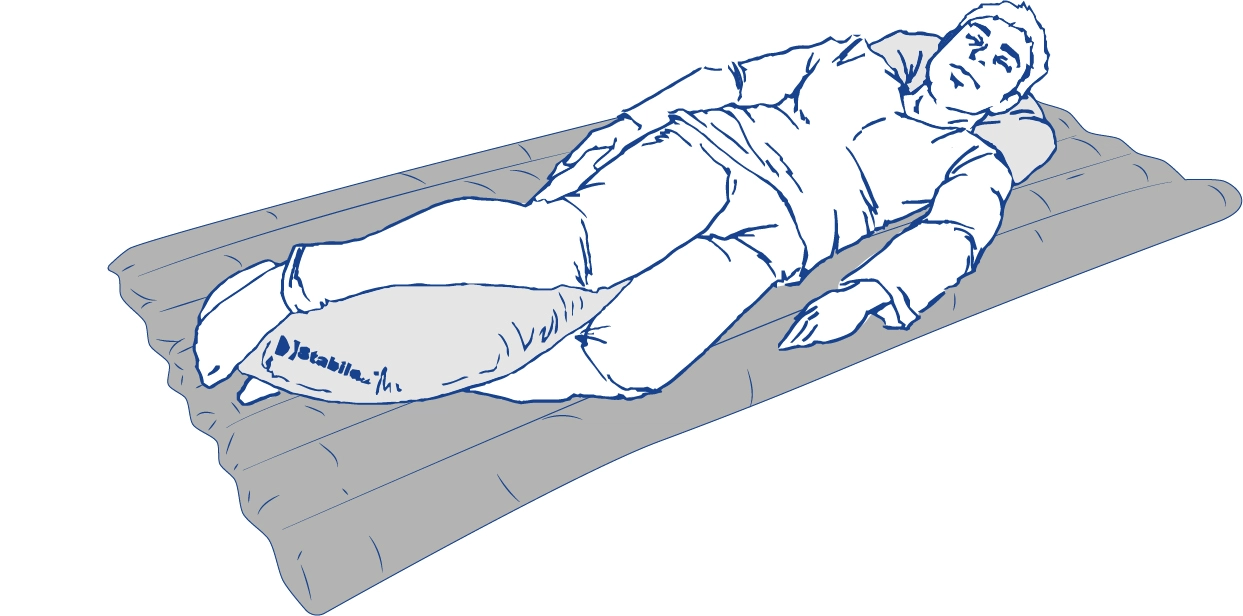

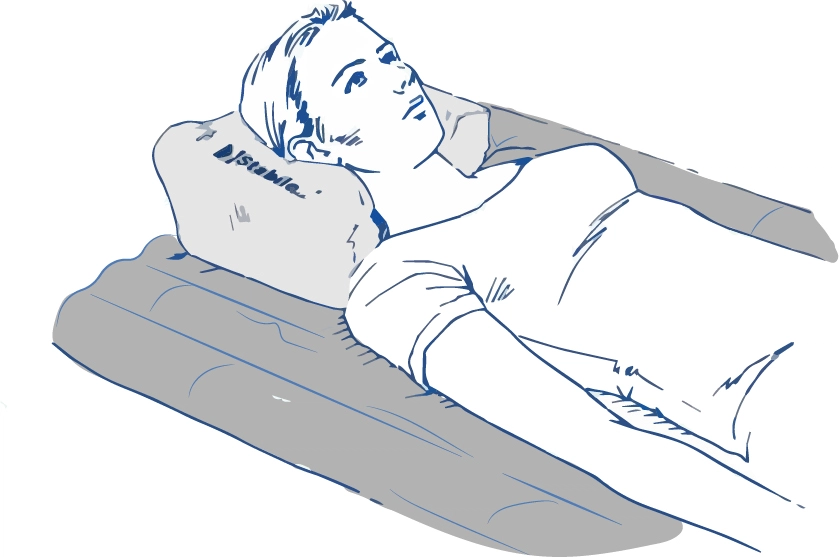

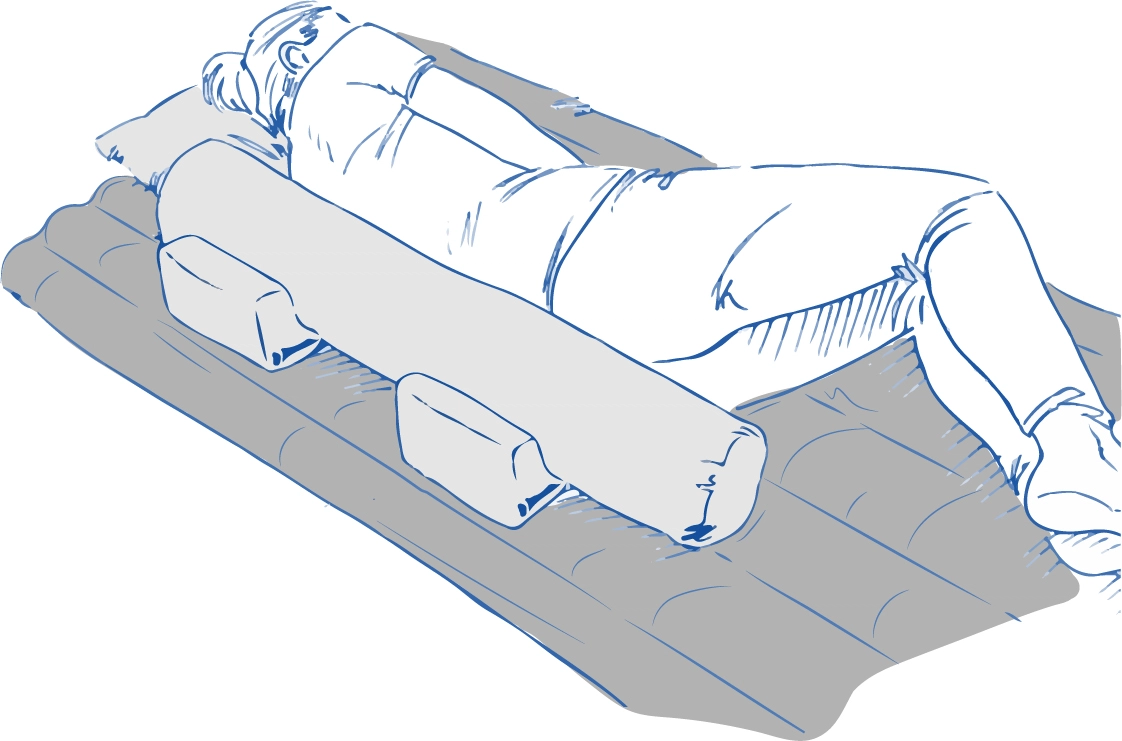

Durable and well-thought-out design allows other STABILObed® components to be mounted directly on the mattress. It is possible thanks to the system of Velcro straps and special openings between the segments. The arrangement of the openings on the whole mattress corresponds to the different body segments that we want to support – head, shoulders, trunk, upper limbs, lower limbs, etc. These segments also allow for complete flexibility when using other elements of the system, as needed along or across the mattress (check the correct way to attach the cushions to the mattress in the manual). Any other cushions that do not require permanent attachment to the mattress can also be used.

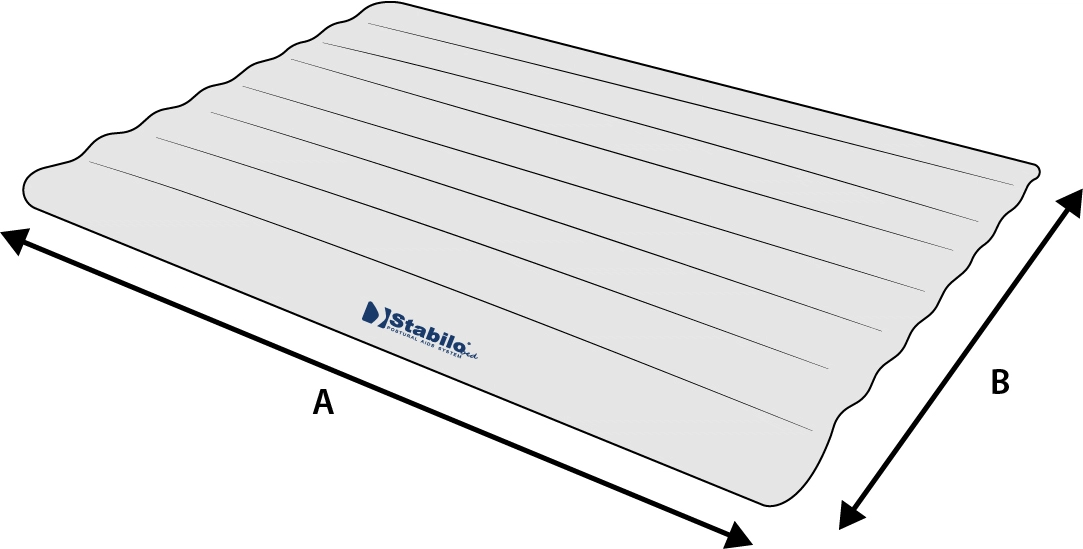

The STABILObed® modular mattress is sized to fit standard hospital beds. It is applied directly on top of the bed mattress.
Compatible products with the M-SS modular mattress are marked with special logo:
Cushions intended for direct installation on a modular mattress are equipped with self – adhesive straps (Velcro Strap System™).
For details, see the user manual or contact the sales department.
Full list:
PM-SS-01 Lower extremity abduction pillow
PM-SS-02 Cylindrical cushion
PM-SS-06 Calf wedge

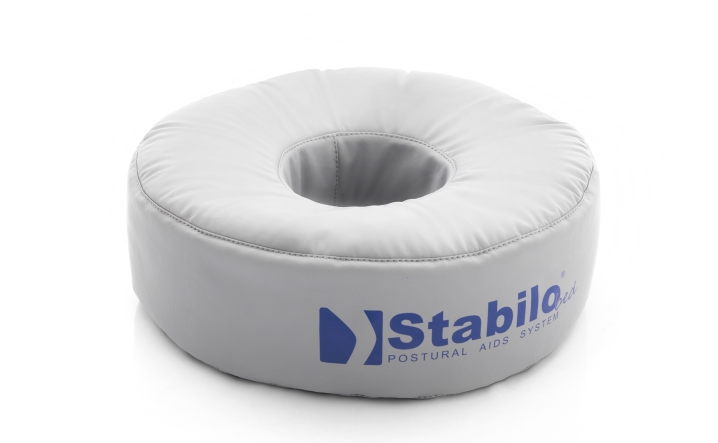

PM-SS-09 Anti-bedsore round cushion

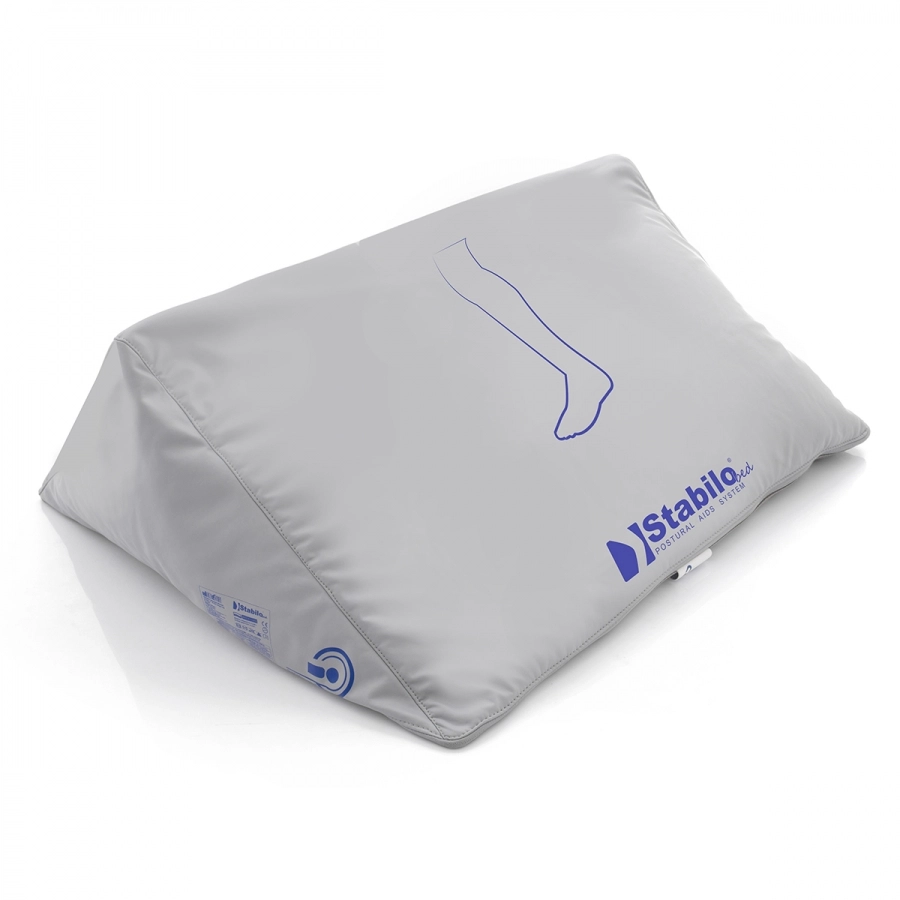

PM-SS-10 Knee wedge

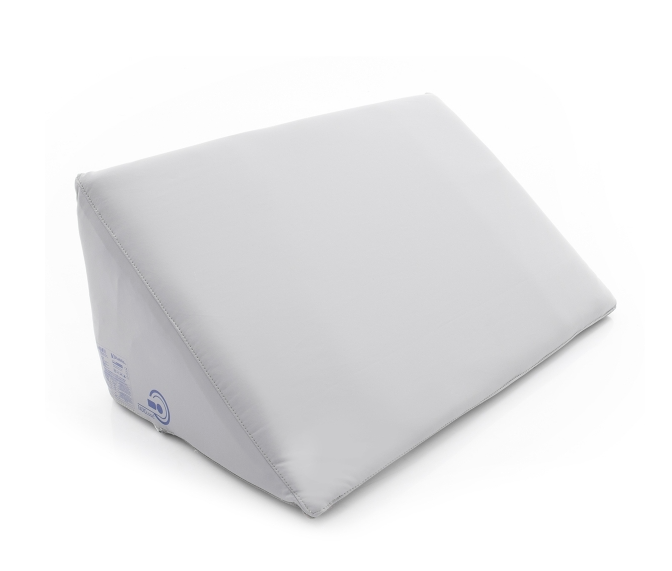

PM-SS-12 Lateral positioning wedge

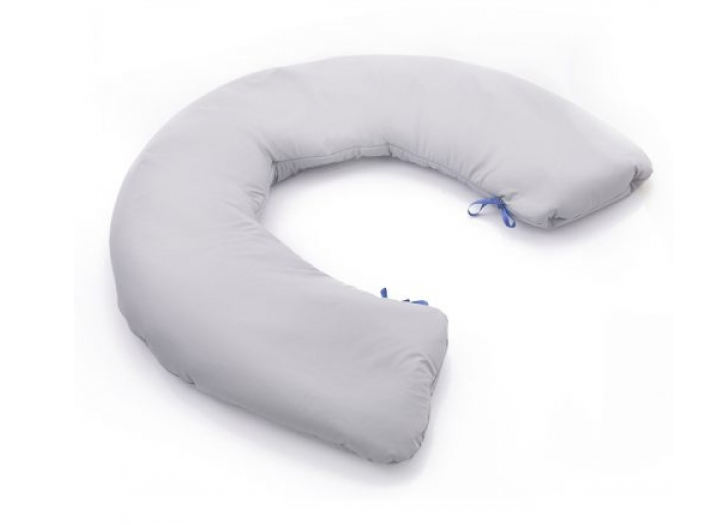

PM-SS-13 Ring cushion

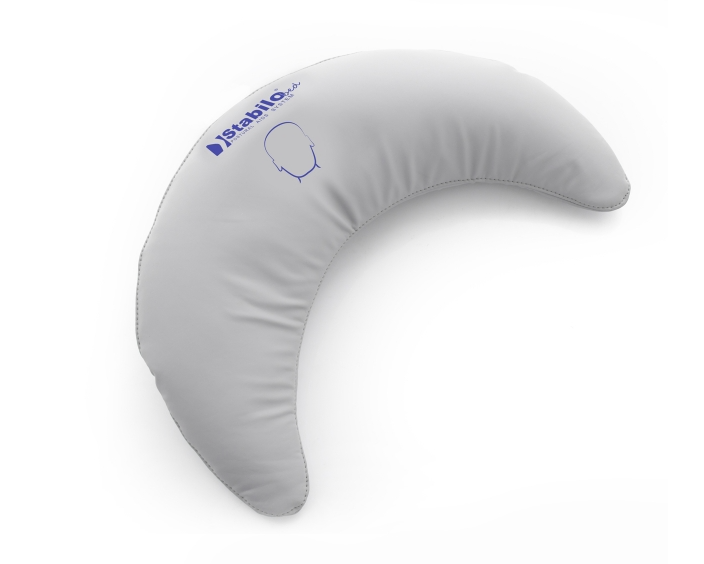

PM-SS-15 ‘V’ pillow
PM-SS-18 Headrest

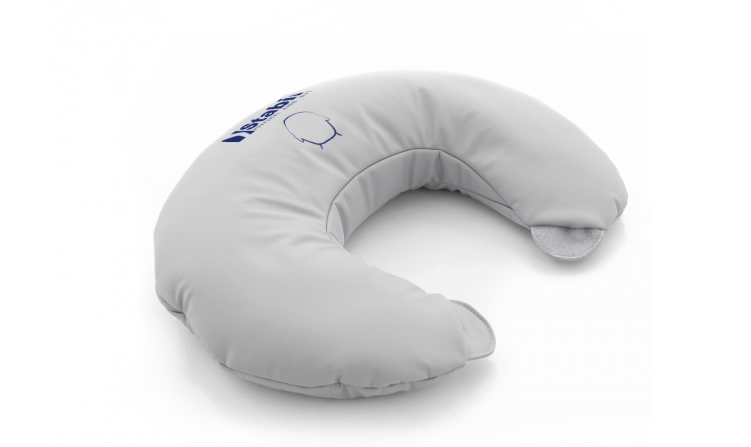

PM-SS-19 ‘V’ pillow

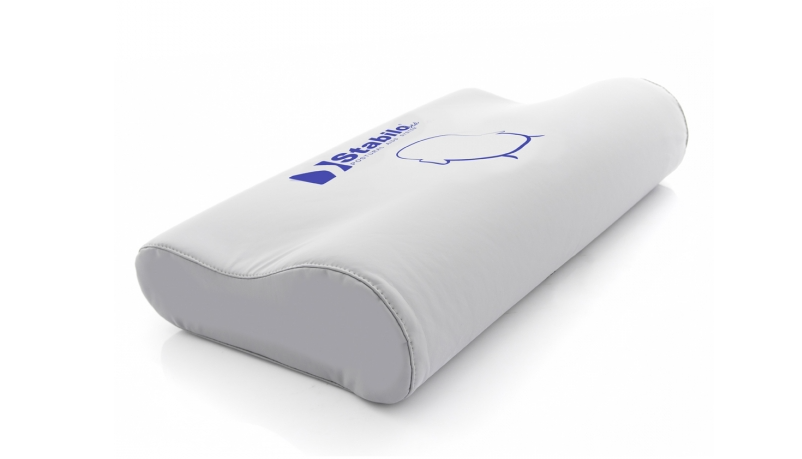

PM-SS-26 Orthopedic neck pillow
PM-SS-30 Lower limb positioning wedge

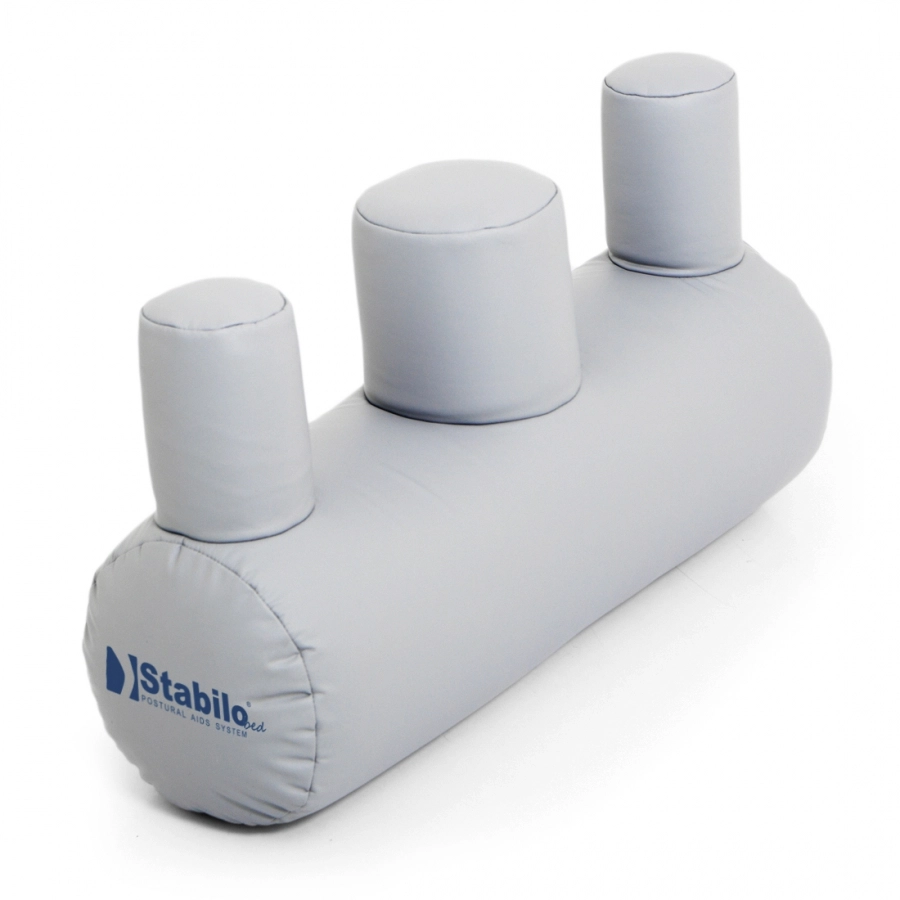

PM-SS-32 Cylindrical cushion with the abduction wedge and side supports
KM-SS-01 Thermoactive eleveation arm wedge
KM-SS-02 Wedge with self-gripping function

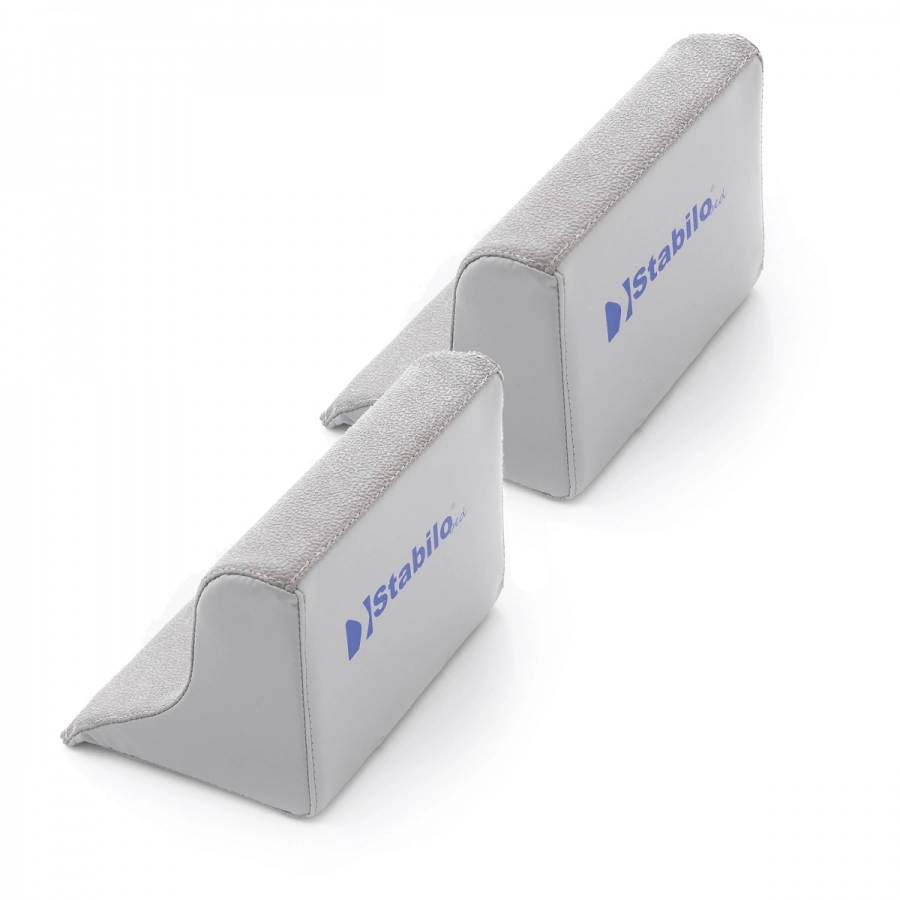

KM-SS-08 Shaped wedge

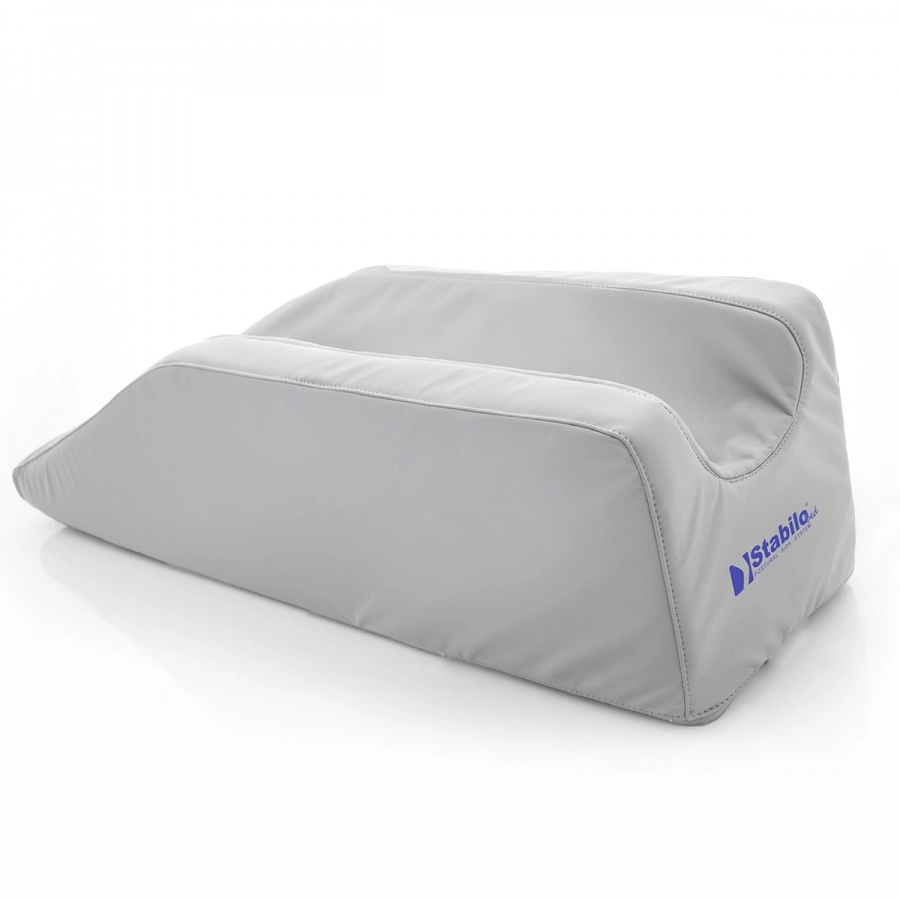

KM-SS-10 Braun splint
Structure and Maintenence

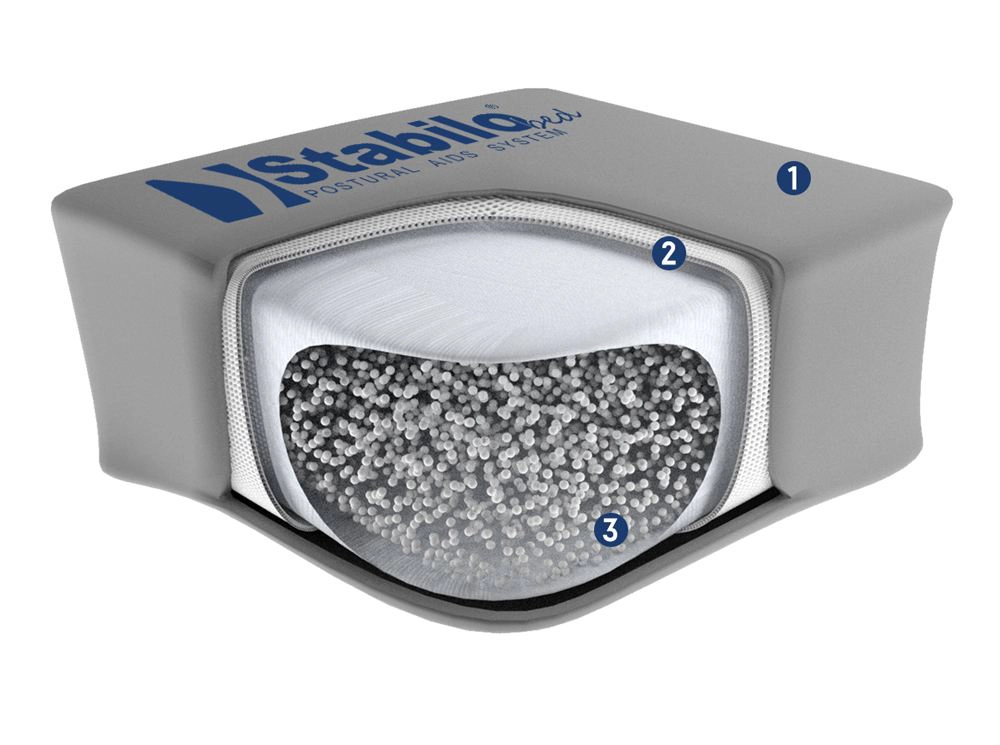

Structure
- PureMed™
- AirMesh™
- Granules
Filling
PureMed™
Antibacterial fabric safe for people, easy to disinfect, and suitable for multiple users in hospitals or rehabilitation centers. Contains Silver Zeolite components and complies with REACH regulation. Light, soft and easy to shape.
AirMesh™
AirMesh is a special aerating-massaging fabric used in the places, which have a directis a special aerating-massaging fabric used in the places, which have a directcontact with the user’s body. As a result, the comfort of use has significantly increased, andat the same time the risk of bedsores has considerably decreased.
Granules
The product has been filled with very light and small polystyrene granules. The granules may move freely inside the product, and as a result it is muchthe product has been filled with very light and small polystyrene granules. The granules may move freely inside the product, and as a result it is mucheasier to adjust the product to the user’s body shape. Additionally, the air, which is inside PureMed™ the cushion, can easily migrate through the vapour-permeablecover around the user’s body.
Special features of PureMed™
- Compliant with the REACH regulation aimed at ensuring a high level of health and environmental protection.
- Passed the cigarette test and the matchstick test, proving it is a non-flammable fabric.
- Free of heavy metals, phthalates, allergic substances and carcinogens.
- Lightweight, soft, elastic and easy to shape.
- OEKO-TEX STANDARD 100® certified for skin-friendly parameters.
- Th fabric is Waterproof.
- Hygienic certificate issued by the National Institute of Public Health.
- The fabric is breathable.
- PureMed™ is vapour-permeable in one way only – the air from the inside may migrate freely outside.
- It is antibacterial and easy to disinfect.
Disinfection
Maintenance
PureMed™ meets all the essential requirements of the medical products of different kinds, according to the Regulation of the Ministers of Health on 3 November 2004 and the requirements contained in Annex I to Council Directive 93/42/EEC of 14 June 1993 concerning medical devices , deployed by the law of 30 April 2004 of Medical Devices (OJ L 93 of 2004., pos. 896). It is a flexible fabric which is safe for people. It is antibacterial, waterproof, vapour permeable and easy to disinfect.PureMed™ should be cleaned according to the laundry guide. Coated materials should be cleaned with the use of neutral pH soap solution (about 7) applied with a soft sponge or a damp cloth. Rub gently and wipe dry to remove the rest of the detergent. In order to keep the original colour and shine level, the procedure should be repeated every month.
Stains should come out if you use 25% solution of ethanol. Rub gently and wipe dry to remove the rest of the detergent.
Please, bear in mind that some stains might not be completely removed from the cleaned surface. It depends on several factors like active dyers permanently migrating to the material surface, the material composition and finish, or chemical composition of dirt as well as the time the soiling has remained on the material surface.
You should pay particular attention to the generally available domestic cleansers whose components might react with the soiling and cause an effect contrary to what was originally intended.
Remember that PureMed™ should never be cleaned with domestic cleansers and cleaning agents that are generally recommended for ‘eco-leather’.
PureMed™ Technical specification
| Surface weight |
200 ± 15 [g/m²] |
| Type of PU coating |
100 [%] |
| Type of PES carrier |
100 [%] |
| Strength breaking along |
≥20 [daN/5cm] |
| Strength breaking |
≥10 [daN/5cm] |
| Waterproof |
≥2000 [mm of H₂O] |
| Vapour permeability |
≥300 [g/m²/24h] |
