AKVOSEGO Bath Chair

AKVOSEGO Bath Chair

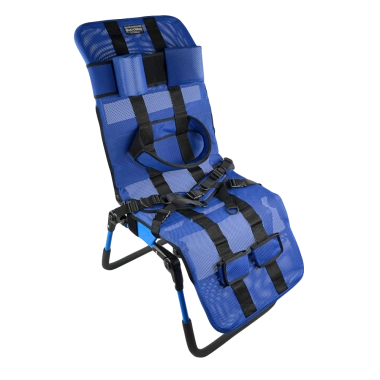

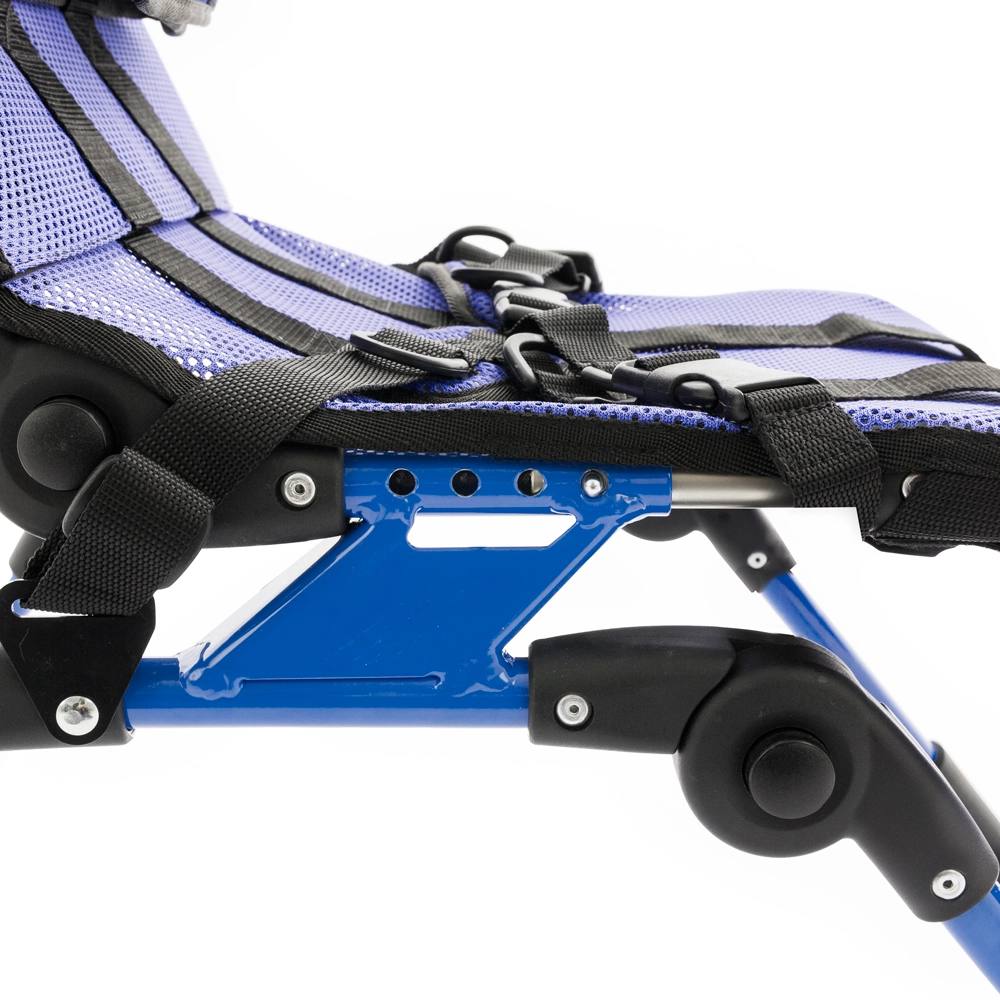

AKVOSEGO™ bath chair is simple and innovative solution that is helpful while taking care of disabled people. The bath chair consists of solid frame that is made of aluminium and, moreover, it protects from adverse effects of water. Furthermore, frame is equipped with foam covers that protect bathtub or kids bath tub from scratching. Unique construction of frame makes it possible to adjust the tilt angle of footrest and backrest.

SKU: AKVOSEGO Categories: 6. Bath Chairs, Special Needs Aids Tags: akcesmed, akcesmed poland, bath accessories, bath chair, bath seat, bath support, special needs Brand: Akces-Med Poland

Description

Furthermore, it is also possible to change distance as well as seat’s tilt angle towards floor. It is highly beneficial due to the fact that product is correctly adjusted to user’s needs which is very helpful while e.g. washing little user’s hair.

Concerning upholstery, it is made of impermeable net. AKVOSEGO™ bath chair can be used together with BodyMap^® cushion either in a room or during bath because all BodyMap^® cushions are totally waterproof! The use of BodyMap^® cushion makes the stabilization of patient more efficient during bath.

Special features

Waterproof: This construction is neutral for harmful water influence.
Lightweight construction: The product is made of lightweight and durable materials.
Compact: When folded occupies very little space.

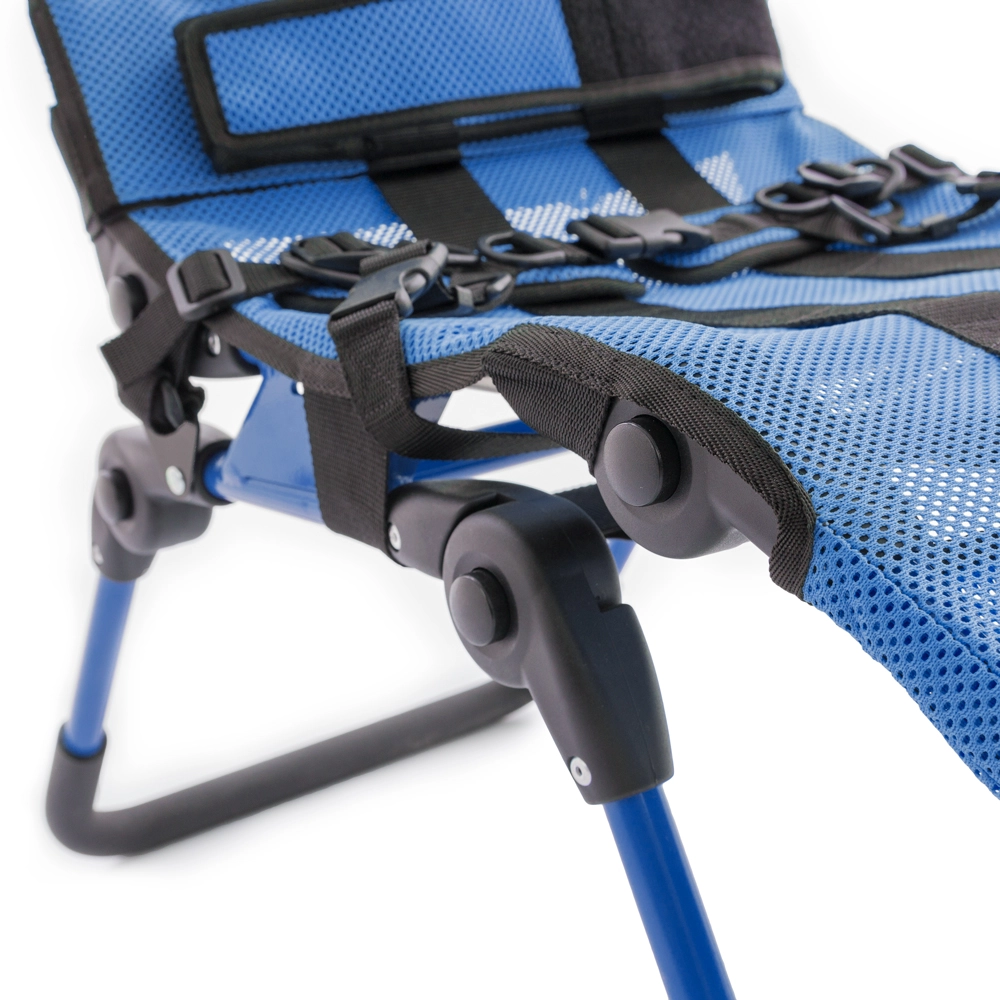

Easy to use: Thanks to the use in the product of an innovative four-bar linkage it is very user friendly.
Safety: Seat belts protect the child while bathing.

Indications

INDICATIONS

Bath chair AKVOSEGO™ should be used in case of:

cerebral palsy (CP)
paralysis or paresis
poliomyelitis (Heine-Medin disease)
limb injuries or limb amputation
limb deformities
joint arthritis and injuries

Sizes

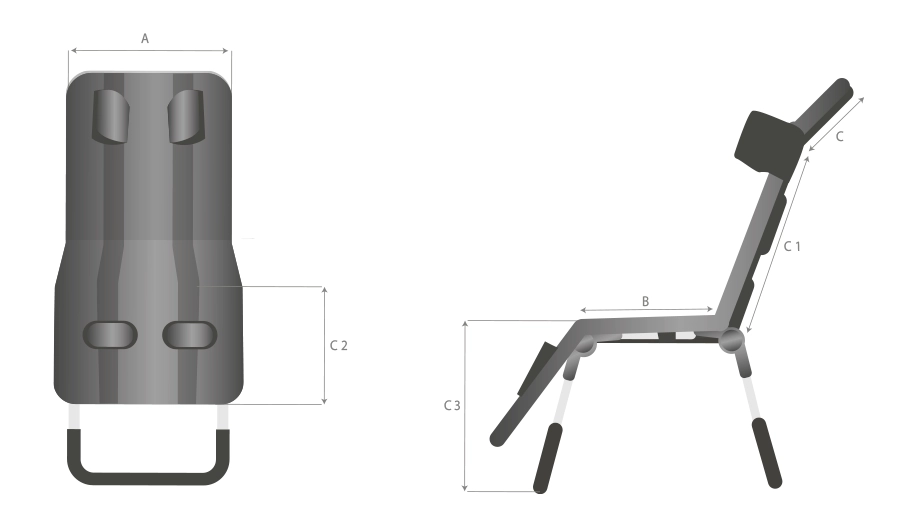

Symbol	Measurement	Unit	Size 0	Size 1	Size 2	Size 3
A	Product width	[cm]	37	42	45	50
B	Seat depth	[cm]	23 – 28	28 – 33	32 – 40	37 – 50
C	Headrest height	[cm]	16	16	19	23
C₁	Backrest height	[cm]	31	40	44	50
C₂	Lower leg lenght	[cm]	26	31	36	41
C₃	Seat height (from the floor)	[cm]	11 – 44	11 – 44	13 – 49	15 – 54
	Footrest angle (relatively to the seat)	[°]	90 – 180	90 – 180	90 – 180	90 – 180
	Backrest tilt angle (relatively to the seat)	[°]	90 – 180	90 – 180	90 – 180	90 – 180
	Headrest angle (relatively to the backrest)	[°]	205	205	205	205
	Max. user weight	[kg]	25	30	50	75
	Indicative user height*	[cm]	< 100	100 – 120	120 – 140	130 – 170

Note: Measurement tolerance range is +/- 1 cm / ½ in.
*This measurement cannot be the main parameter while choosing the product size.

WEIGHT AND DIMENSIONS

Measurement	Unit	Size 0	Size 1	Size 2	Size 3
Width	[cm]	42	42	45	50
Width after folding	[cm]	42	42	45	50
Length	[cm]	70	75	91	97
Length after folding	[cm]	64	67	76	88
Height	[cm]	80	85	96	113
Height after folding	[cm]	28	28	32	40
Weight	[kg]	4	4,5	5	8

Note: Measurement tolerance range is +/- 1 cm / ½ in.
Note: Approximate values, depending on the product configuration.

CONCISE SIZE TABLE

Symbol	Opis	Unit	Size 0	Size 1	Size 2	Size 3
A	Product width	[cm]	37	42	45	50
B	Seat depth	[cm]	23 – 28	28 – 33	32 – 40	37 – 50
C	Headrest height	[cm]	16	16	19	23
C₁	Backrest height	[cm]	31	40	44	50
C₂	Seat height (from the floor)	[cm]	26	31	36	41

Note: Measurement tolerance range is +/- 1 cm / ½ in.
** As a part of our permanent product improvement, Akces-Med reserves the right to change design and specifications without notice. Further, not all options and features offered are compatible with all configurations. Please refer to the user instruction manual for more information.
