AKVOLITO Bath deckchair

akvolito-bath-deckchair
AKVOLITO Bath deckchair - Image 2
AKVOLITO Bath deckchair - Image 3
AKVOLITO Bath deckchair - Image 4
AKVOLITO Bath deckchair - Image 5

AKVOLITO Bath deckchair

Bath chair AKVOLITO™ is simple and innovative solution that is helpful while taking care of disabled people.It consists of solid frame that is made of aluminium and, moreover, it protects from adverse effects of water. Furthermore, frame is equipped with foam covers that protect bathtub or kids bath tub from scratching. Unique construction of frame makes it possible to adjust the tilt angle of four areas namely footrest, seat, backrest and headrest. Moreover, seat can be adjusted at any height.

SKU: AKVOLITO Categories: , Tags: , , , , , , Brand:

Description

Bath chair AKVOLITO™ is simple and innovative solution that is helpful while taking care of disabled people.

Bath chair AKVOLITO™ consists of solid frame that is made of aluminium and, moreover, it protects from adverse effects of water. Furthermore, frame is equipped with foam covers that protect bathtub or kids bath tub from scratching. Unique construction of frame makes it possible to adjust the tilt angle of four areas namely footrest, seat, backrest and headrest. Moreover, seat can be adjusted at any height.

It is highly beneficial due to the fact that product is correctly adjusted to user’s needs which is very helpful while e.g. washing little user’s hair. Concerning upholstery, it is made of impermeable net.

As far as bath deckchair AKVOLITO™ is concerned, its upholstery and frame are available in different colours – it depends on its size.

Special features

  1. Waterproof: This construction is neutral for harmful water influence.
  2. Lightweight construction: The product is made of lightweight and durable materials.
  3. Compact: When folded occupies very little space.
  4. Easy to use: Thanks to the use in the product of an innovative four-bar linkage it is very user friendly.
  5. Safety: Seat belts protect the child while bathing.
AKVOLITOAKVOLITO

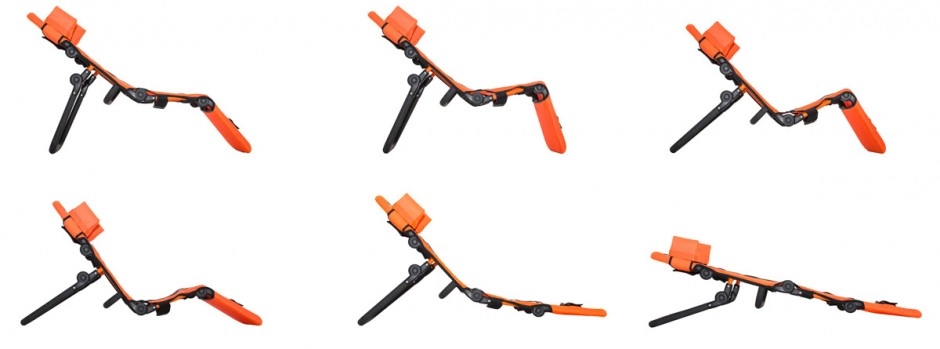

AKVOLITO – Various recline angles

Indications

INDICATIONS

Bath chair for children AKVOLITO™ should be used in case of:

  • cerebral palsy (CP)
  • paralysis or paresis
  • poliomyelitis (Heine-Medin disease)
  • limb injuries or limb amputation
  • limb deformities
  • joint arthritis and injuries

Sizes

Size Baby

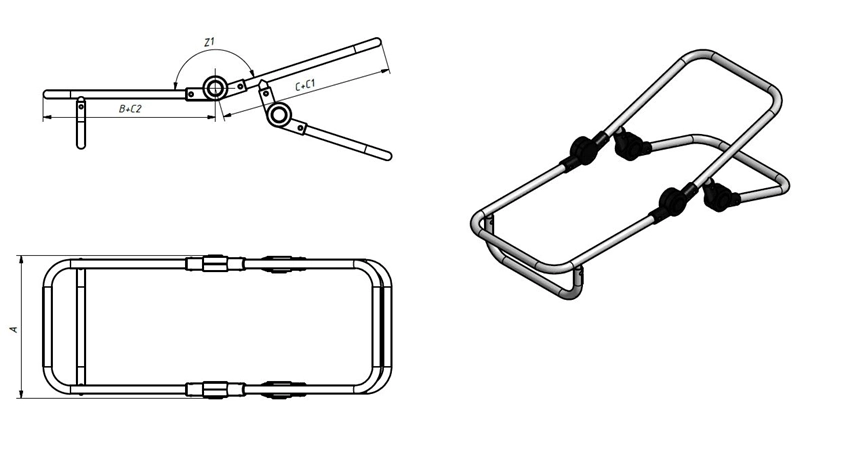

akvolito baby

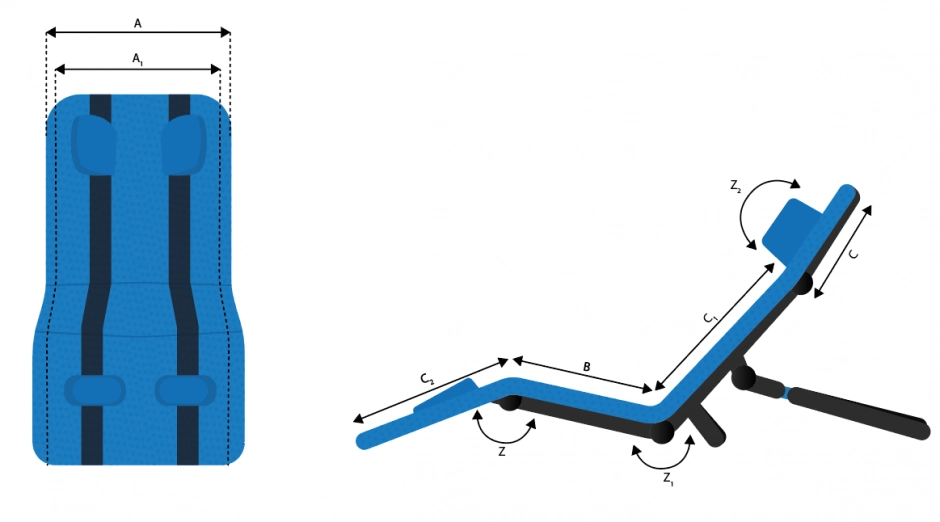

Symbol Measurement Unit Size Baby Size 0 Size 1 Size 2 mini Size 2 Size 3 Size 4
A Product width [cm] 35 35 40 35 40 45 50
A1 Usable width [cm] 26 26 31 26 31 36 41
B Seat depth [cm] – 22 25 28 28 33 35
C Headrest height [cm] – 19 22 26 26 30 33
C1 Backrest height [cm] – 28 33 37 37 43 50
C2 Lower leg lenght [cm] – 24 28 31 31 36 41
B + C2
Seat depth with lower leg length
 [cm] 41 46 53 59 59 69 79
C + C1
Backrest height with backrest height
 [cm] 41 47 55 63 63 73 83
Z Footrest angle (relatively to the seat) [°] – 90 – 180 90 – 180 90 – 180 90 – 180 90 – 180 90 – 180
Z1
Backrest tilt angle (relatively to the seat)
 [°] 90 – 180 90 – 180 90 – 180 90 – 180 90 – 180 90 – 180 90 – 180
Z2 Headrest angle (relatively to the backrest) [°] – 144 – 234 144 – 234 144 – 234 144 – 234 144 – 234 144 – 234
Max. user weight** [kg] 25 30 50 50 60 70 80
 W Indicative user height* [cm] 55 – 75 < 80 < 90 < 105 < 105 < 120 < 160

Note: Measurement tolerance range is +/- 1 cm / ½ in.
*This measurement cannot be the main parameter while choosing the product size.
**ATTENTION: The bath chair must be placed on three support points with the ground. If the bath chair is resting on only two of the outermost support points, the maximum weight allowed is 70% of the maximum weight (not applicable to the “Baby” size).

WEIGHT AND DIMENSIONS

Measurement Unit Size Baby Size 0 Size 1 Size 2 mini Size 2 Size 3 Size 4
Width [cm] 35 35 40 35 45 50 50
Width after folding [cm] 35 35 40 35 45 50 50
Length [cm] 74 – 82 68 – 97 76 – 113 87 – 124 87 – 124 97 – 145 107 – 164
Length after folding [cm] 41 50 60 67 67 76 86
Height [cm] 18 – 51 24 – 57 24 – 63 26 – 68 26 – 68 27 – 75 27 – 81
Height after folding [cm] 30 23 23 23 23 23 23
Weight [kg] 2,2 3,0 3,5 3,4 3,8 4,4 5

Note: Measurement tolerance range is +/- 1 cm / ½ in.
Note: Approximate values, depending on the product configuration.
As a part of our permanent product improvement, Akces-Med reserves the right to change design and specifications without notice. Further, not all options and features offered are compatible with all configurations. Please refer to the user instruction manual for more information.

How to Measure User?
